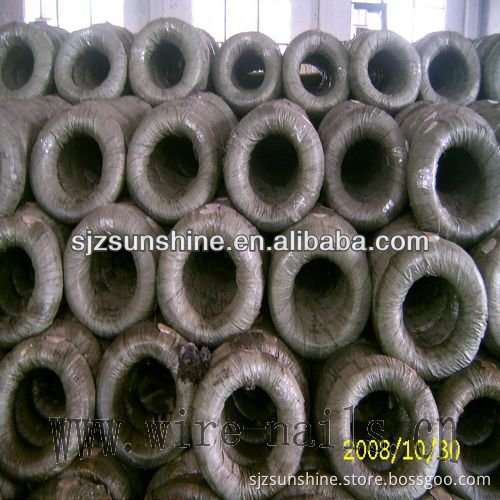

25kg/roll galvanized wire

Specifications 25kg/roll galvanized wire

material:Q195 low carbon steel

0.2mm-6.0mm

Package:300g,350g,1kg,8kg,25kg per roll

ISO9001:2000

We are one of the biggest factories which produce common wire nail, umbrella roofing nails, coil nail, building nails, screw nail, concrete nail, also we can supply you the electro galvanized iron wire, Black Annealed Wire. We have rich experience and we have exported them for many years. We would like to provide good quality products and first-class service to the customers at home and abroad. Our products were qualified by ISO9001 for our quality control for our customers each time.     Galvanized Iron Wire
Technical Specifications:
Metric system british system
1. Electro Galvanized Iron Wire, Zinc coating: 20g/m2—25g/m2   Galvanized Iron Wire ranging from 0.14 to 5.0mm   Tensile strength:30-55kg/mm2
2.Hot Dipped Galvanized Iron Wire, Zinc coating: 50g/m2—370g/m2
Produced Wire gauge: from BWG8 to BWG32
Strength:45gr/mm2—55gr/mm2
single roll wire without inter-cuts or breaks
be packed on spool or wood stick.
be produced according to your order.
Characteristic & Usage: zinc coated Firmed on low carbon iron wire, for anti-rust. used in the wire mesh weaving, construction, industry, agriculture and stockbreeding etc.
Package: 0.3kgs—1000kgs are available,packed by plastic film and hessian cloth

Diameter (mm)	British		Diameter (mm)	British
	BWG	mm		BWG	mm
0.20	33	0.2	1.4	17	1.47
0.22	32	0.23	1.6	16	1.65
0.25	31	0.25	1.8	15	1.83
0.30	30	0.31	2.0	---	---
0.35	28	0.36	2.2	14	2.11
0.40	27	0.41	2.5	13	2.41
0.45	26	0.46	2.8	12	2.77
0.50	25	0.51	3.0	11	3.05
0.55	24	0.56	3.5	10	3.40
0.70	22	0.71	---	9	3.76
0.80	21	0.81	4.0	8	4.19
0.90	20	0.89	4.5	7	4.57
1.0	---	---	5.0	6	5.16
---	19	1.07	5.5	5	5.59
1.2	18	1.25	6.0	4	6.05
