foam pipe insulation for air conditioner

Specifications foam pipe insulation for air conditioner

Duct or wall insulation

Board , Pipes , Elbow

Non-toxic and harmless

Fireproof A1

 foam pipe insulation for air conditioner

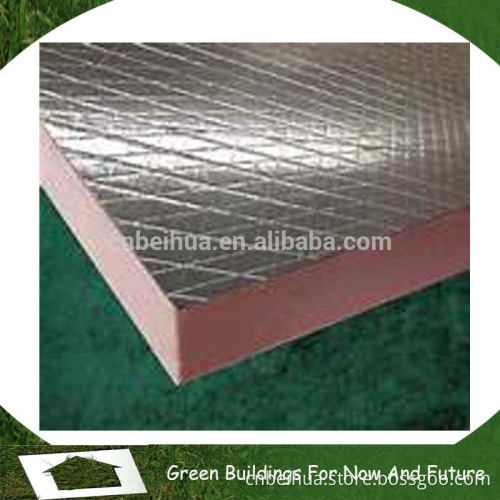

Item No.: BHC001 Material: Double side aluminum foil+Phenolic Foam Air Duct
Thickness of aluminum foil: 80um
Total thickness: 20mm
Size: 1.2m(w)x4m(L)
MOQ: 210 sheets(1008 square meter)
Item No.: BHC002 Material: Aluminum foil+Phenolic Foam Air Duct+steel sheet
Thickness of aluminum foil: 80um
Thickness of Steel: 200um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280 sheets(1008 square meter)

Item No.: BHC003
Material: Double side steel sheet+Phenolic Foam Air Duct
Thickness of Steel: 200um
Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280sheets(1008 square meter)
  Phenolic foam air duct panel is widely used in central air-conditioning ducting.  Its of good appearance, beautiful colors, light weight, high strength and easy installation. Its fire-proof, water-proof and of good insulation property. Using this material, the user can save a lot of costs and time.  Its widely used in insulation workshops, cleaning rooms, high class buildings, composite cold storages, containers, etc.

Technical Data Sheet of Phenolic Foam Panel with Colored Steel
ITEM	UNIT	SPECIFICATION
Density	kg/m3	60-70 kg/m3
Aluminum thickness	mm	0.08
Steel thickness	mm	0.2
Total thickness	mm	20
Dimension	mm	4000*1200*20
Temperature range	centigrade	-180 to 140
Thermal conductivity	w/m. k	0.020-0.037
Firproofing performance	~	Glass 1  (BS 476 part 6& 7)
Oxygen index	%	36-43
Grade of smoke density	~	4 SDR
Water vapor transmission	g/(m2.24h)	< 1
Compression strength	pa	1500
Flexural strength	Mpa	1
Air leakage	%	< 2
Material water absorption rate	%	< 1.5
Mechanical loss rate	~	0.01
Recycle rate	%	60-80
life time	years	20-30
