Portable Ground Earth Stick with Clamp and Wire Set - 0.4-500KV

Portable Ground Earth Stick with Clamp and Wire Set - 0.4-500KV

$119.99

1-9 piece
$115.99

10-49 piece
$110.99

50-99 piece
$107.99

≥100 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Port:: xingang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	15000 Piece/Pieces per Month
Payment Type:	L/C,T/T,Western Union,MoneyGram
Port:	xingang

Product Description

Products Description

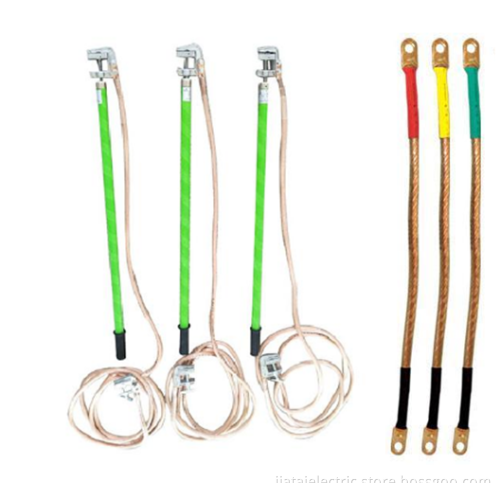

0.4-500KV Portable Ground Earth Stick with Clamp and Wire Set

1.Product characters: the hook adopts light aluminium alloy compression casting, pole use the light epoxy manufacture, high strength, excellent ability of electric conduction. Baling wire uses electrolysis copper wire. The temperature scope for
protective cover: ±40°C

2.Specification:

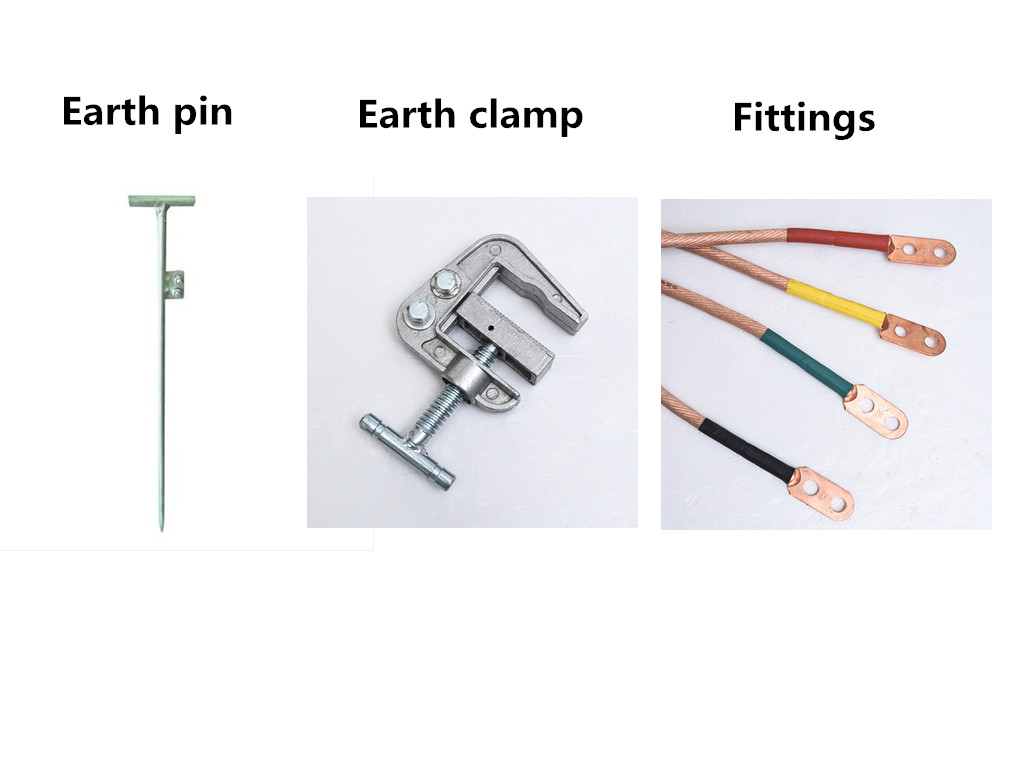

(1)It mainly comprises Ground Sticks, Ground Cable, Ground Clamp and Ground Pin.

(2)Cross area of earthing wire :16mm2,25mm2,35mm2,50mm2,70mm2 etc.
Also can produce it as your request.
(3)Types:

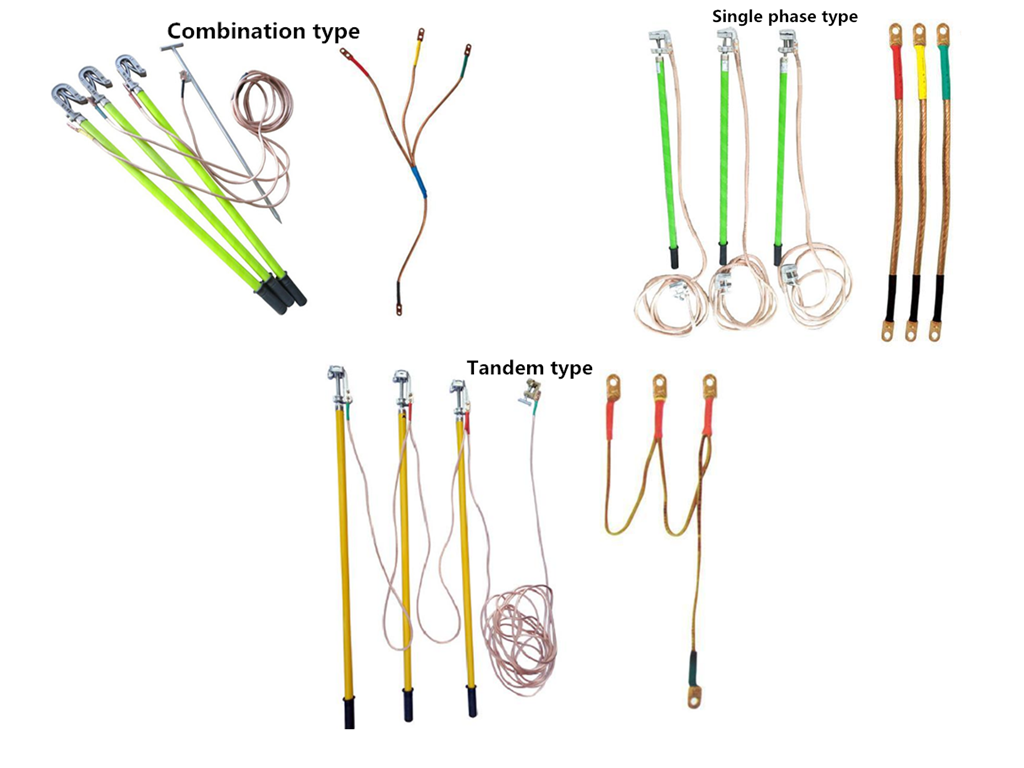

★three ways to connect and hang up the grounding equipment.
A.Combination type
B.Tandem type
C.Single phase type.
We can customize this product according to the requirements.

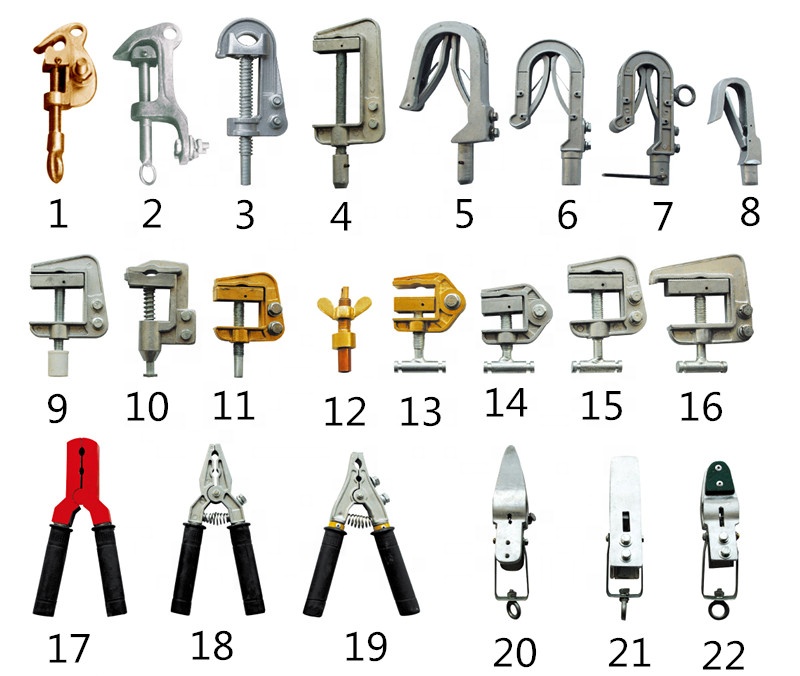

★Different Clamp

3.Applications:
A.distribution lines and systems
B.transmission lines and systems
C.substation bus
D.underground systems
F.industrial circuits and systems

4.Feature:temporary and portable

Model	Ground Cable Size	Recommended Length of Cable	Length of Ground Stick	Number of Ground Stick
JTDX-0.4KV	16mm2	3*1.5m+8m	0.5m	3rods/set
JTDX-10KV	25mm2	3*1.5m+10m	1m	3rods/set
JTDX-35KV	35mm2	3*1.5m+10m	1.5m	3rods/set
JTDX-110KV	35mm2	3*2m+12m	2.0m	3rods/set
JTDX-220KV	50mm2	3*2m+15m	3.0m	3rods/set
Remark:The size can be customized according to your requirement.

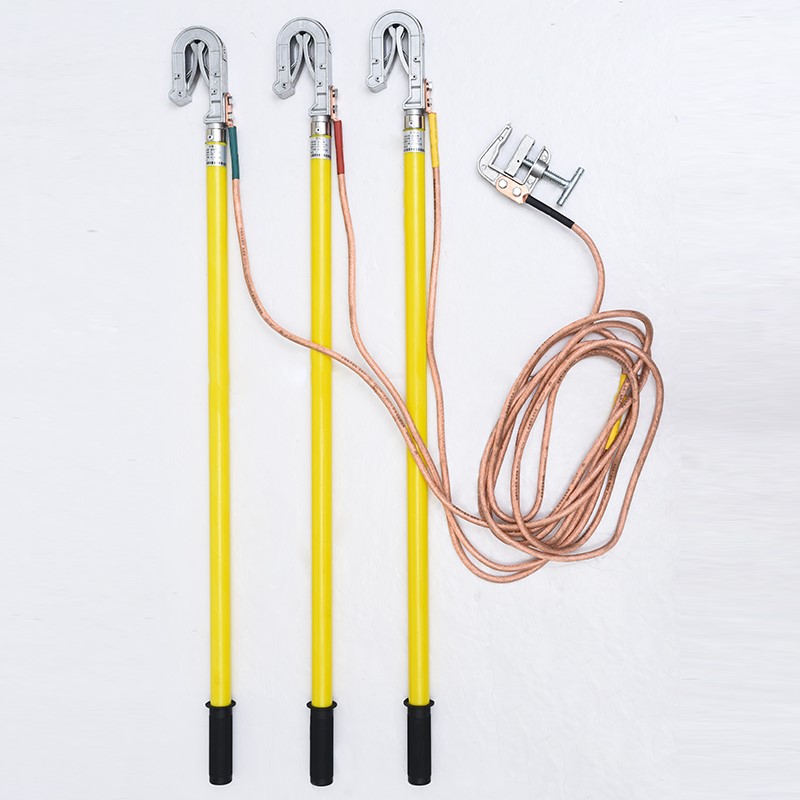

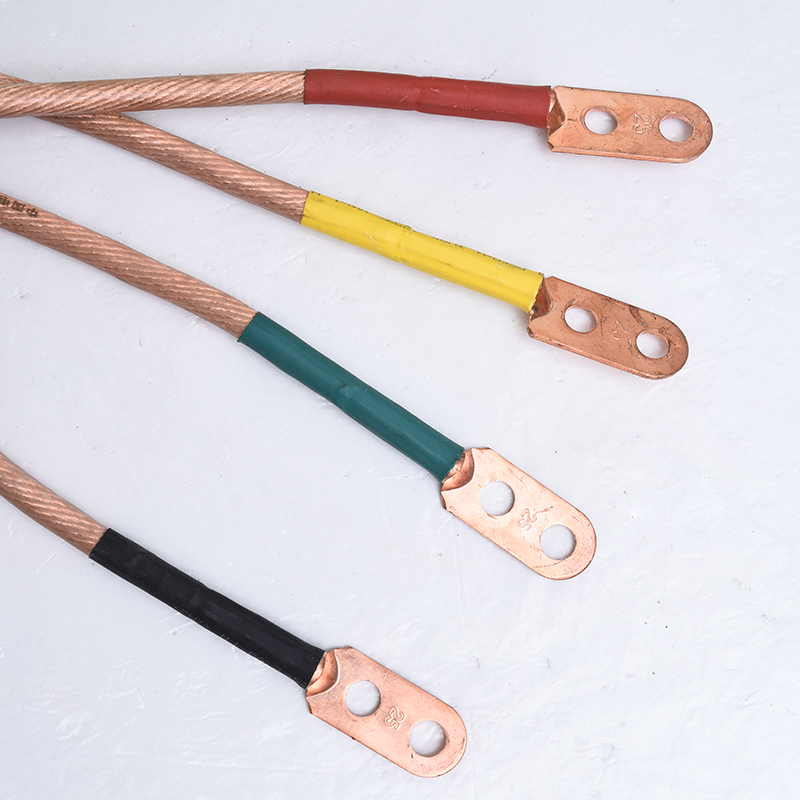

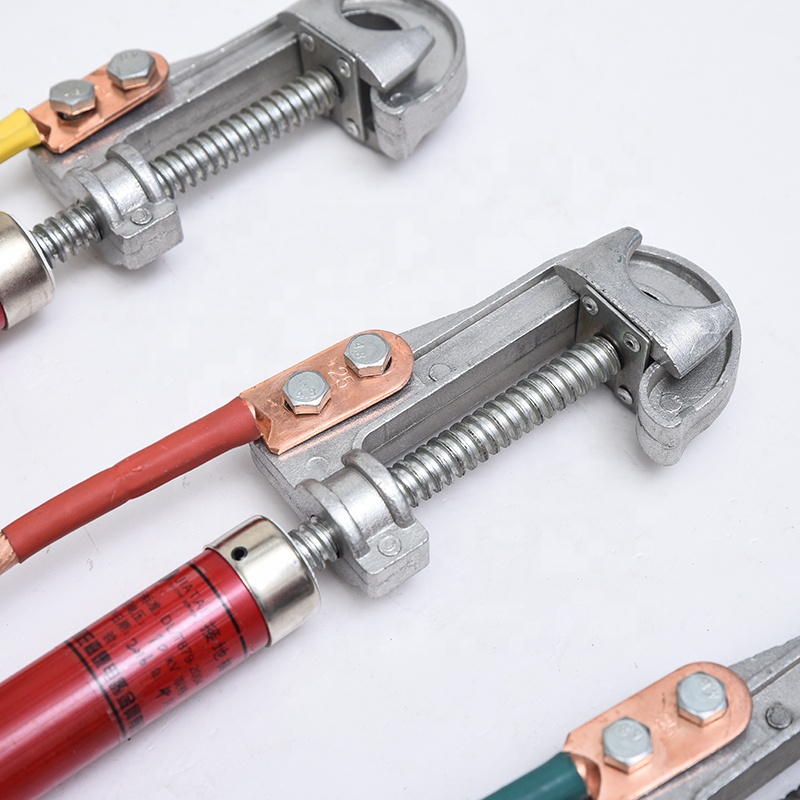

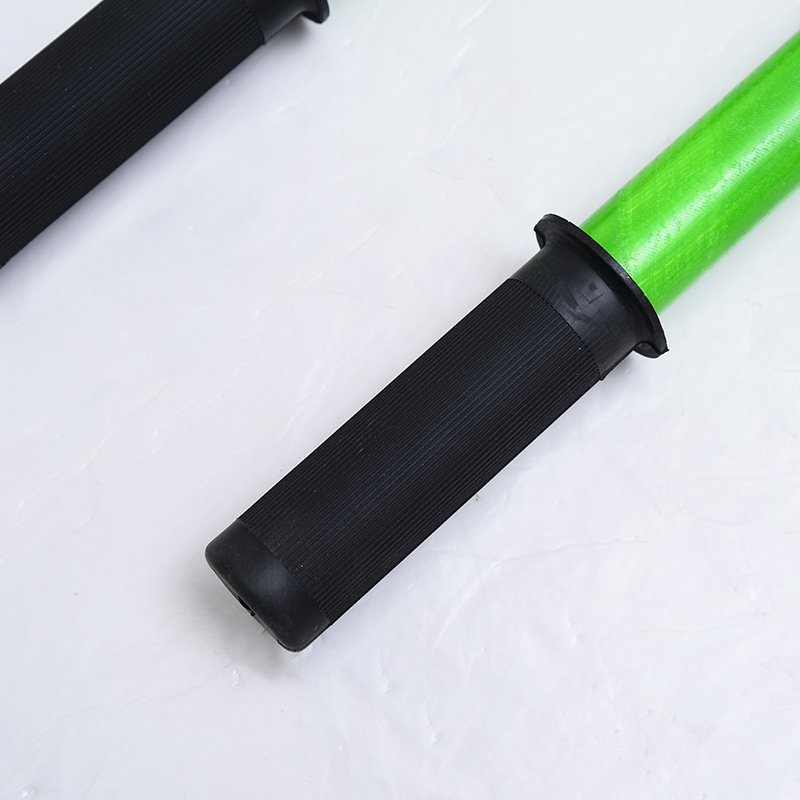

Details Images

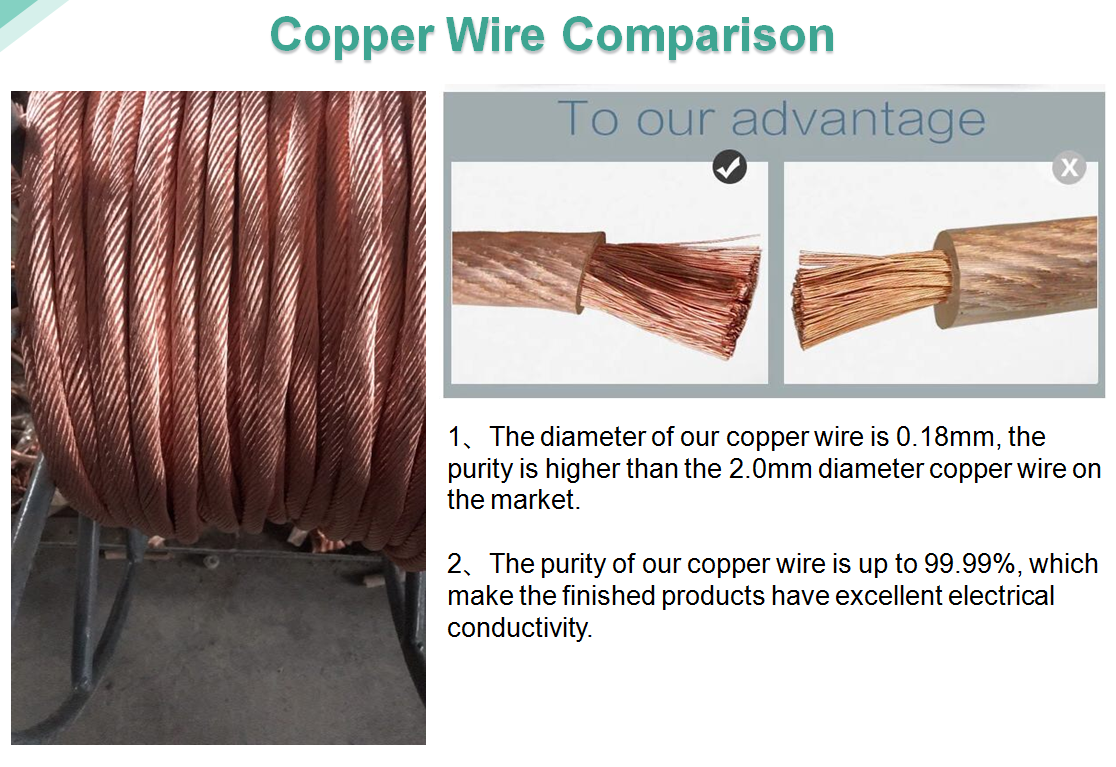

Our Advantages

Package & Delivery
