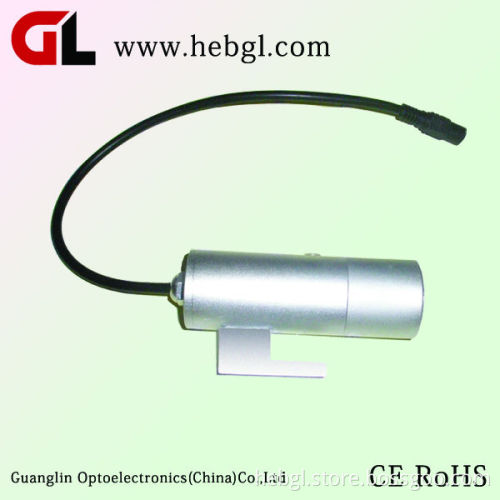

850nm12VDC led infrared illuminator inventory

Specifications 850nm LED Infrared Indoor illuminator

1Operation Power:DC12V 2A

2.Warranty:3years

3. Lifespan:50000hrs

4angle:30,60,90 deg

 850nm12VDC led infrared illuminator     Array Infrared Illuminator Functions&Features Infrared projection distance 0-60m(depend on projection angle),can be upgraded to white light array LED Adopt a hot swap fast loading structure design,disassembly easier,more reliable connection Aluminum shell,the outer surface with the senior anode processing technology Use the third generation Array type infrared high-crightness chip Use constant current-conatant voltage circuit and the PWM pulse width modulation control circuit design   Array Infrared Illuminator Product Parameters

Model	GLK-110B
Environment	Indoor/Outdoor
Voltage	DC12V 2A
Power of the light	1000mW
Power of the adapter	12VDC, external
Working Temperature	-20°C to +60°C
Half intensity beam angle	30,60,90° optional
The light switch	Automatic with the light
Irradiation Distance	0-60m
Dimension of Enclosure	Φ35mm X 114mm
Weight	150g
Accessories	Infrared Illuminator Array GLK-110B

      Array Infrared Illuminator Scope of Application   Apply to community,school,museum,the traffic,station,square internet cafe and other places.     Size Chart         Exploded View   Distance Recognition Figure       Exhibition                    packaging       Our mainly popular sales Indoor or outdoor IR illumiators:Mid-distance illuminator GLK-110B;Long-distance illuminator GLK-110E;Indoor area illuminator GLK-110BE. If any demands,pls kindly contact us,big discount will given for substantial order.
