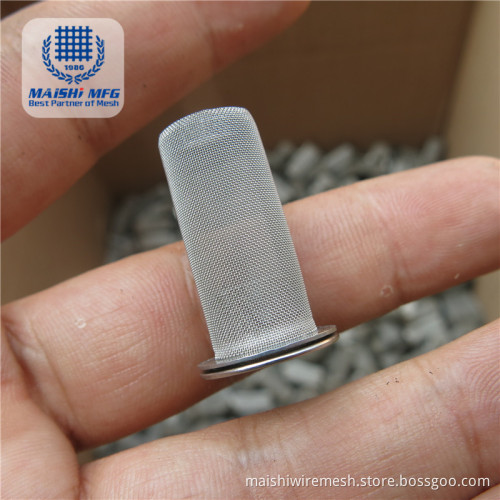

Stainless Steel Woven Filter Tube for Particle Filtration

Our main product is tea Infuser Strainer, basket,  filter tube, filter cylinder,  filter disc etc.,

Customized mesh filter are widely used as  tea filter, water filter, chemical filter, oil filter etc.

Main part is made of stainless steel wire mesh, the mesh detailed specifications is as follow:

Material: AISI304, AISI 316, AISI 316L etc.

Normal mesh size:
Plain weave: 0.5X0.5mesh to 635X635 mesh;
Twill weave:20x20mesh to 400x400mesh;
Plain dutch weave:10X64mesh to 80X700mesh;
Twill dutch weave:20x250mesh to 400X2800mesh;
Reversed dutch weave: 48x10mesh to 720x150mesh.
Wire diameter:0.025mm-1.8mm.

Besides, perforated filter tube is also available. Welcome to contact us for further details!

Features:
High tension: Much higher tension than common polyester mesh and smooth tension;
Super precision: Uniform wire diameter and aperture with extremely low difference;
Low elongation: Very small elongation of wire mesh at high tension;
High flexibility: The wire mesh will not lose elasticity at extreme tension;
High corrosion resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
