Customized Stainless Steel Mesh Filter Tube Cylinder Basket

Customized Stainless Steel Mesh Filter Tube Cylinder Basket

$10.00

≥1000 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,T/T

Product Description

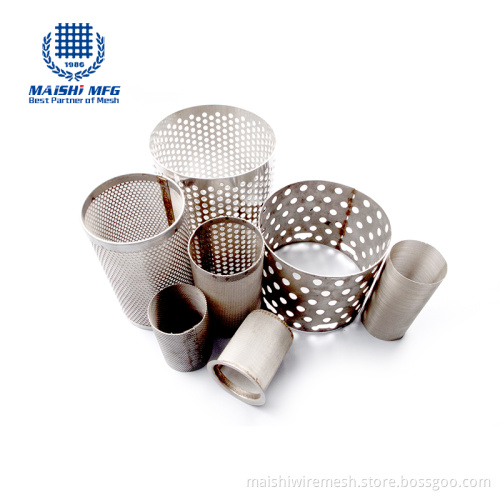

Customized stainless steel mesh filter tube cylinder basket wire mesh basket

stainless steel mesh filter tube cylinder basket

We manufactures purpose-made filters, pressings and filter elements to customers' specifications. Facilities including welding, spot welding, seam welding and press forming.

We offer wire cloth processed welded filter tubes, cylinders and other filter elements is also avaiable. Custom order widths & lengths are available too.

Material: 304, 316

Wire diameter:0.025mm-1.8mm

Width and length: as customer request

Uses: Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, enviroment protection,mine, airspace, paper-making, electronic, metallurgy etc.

Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch	wire diameter(mm)	aperture(mm)	-	mesh/inch	wire diameter(mm)	aperture(mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.25	0.0385

Stainless Steel Woven Wire Mesh(Dutch Weave)
Mesh	Wire Dia. (MM)	Material(AISI)
12meshX64mesh	0.58/0.40	304 or 316
24meshX110mesh	0.36/0.25	304 or 316
14meshX88mesh	0.50/0.33	304 or 316
30meshX150mesh	0.18/0.14	304 or 316
40meshX200mesh	0.14/0.11	304 or 316
50meshX250mesh	0.10/0.071	304 or 316
80meshX700mesh	0.06/0.05	304 or 316
165meshX800mesh	0.071/0.040	304 or 316
165meshX1400mesh	0.05/0.032	304 or 316
200meshX1800mesh	0.05/0.03	304 or 316
325meshX2300mesh	0.030/0.025	316L
400meshX2800mesh	0.030/0.02	316L

Customized stainless steel mesh filter tube cylinder basket wire mesh basket

HEBEI MAISHI make strictly test before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality of filter tube.
