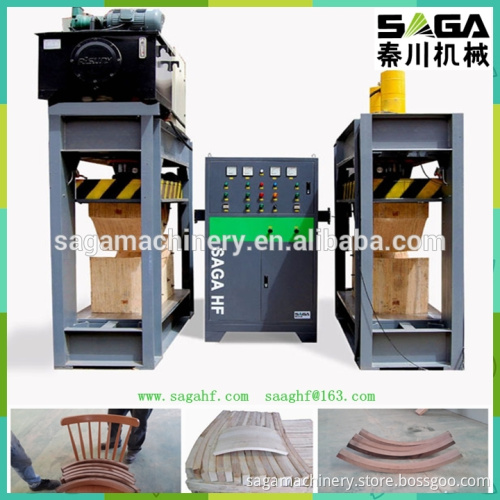

80T Hydraulic Hot Press With High Frequency Dielectric Heating For Plywood Bending (YX80-SA)

................................................................................................................................................................................................................. 80T Hydraulic Hot Press With High Frequency Dielectric Heating For Plywood Bending  (YX80-SA) 1.Hydraulic hot press applies high frequency generator to hydraulic press, by mould and electrode. 2.It transfers the high frequency power to the work piece to achieve the function of fast gluing and forming. 3.Be suitable for: bent plywood chair, bent or arc plywood for the furniture or bed or other bent plywood products like cloth hanger or surface of musical instrument. ................................................................................................................................................................................................................ Features: 1. Fast and uniformly heating. 2. Bending shape is stable, not easy to change delamination. 3. High frequency power is a selectively heating power, it concentrates only on water or glue, wood not consume High Frequency power, so HF heating is effective and power saving. 4. Wooden or MDF mould used, much ecnomic than metal mould if shape is frequently changed.   Basic Parameter

Model	YX80-SA	YX150-SA
HF Generator	20kW, 2 Output	30kW, 2 Output
Press Working Size	1600*800mm	2500*1300mm
Cylinder	80T(2PCS)	150T(2PCS)
Stroke of cylinder	600mm	600mm
Control	Automatic	Automatic
Power of Hydraulic	7.5kW	7.5kW
Opening of Plate	1200mm	1200mm
Over size	2300*800*2200mm	2900*1300*2200mm

  Spare Parts With European and Taiwan Brand
