PN Mud Pump

Product name: PN Mud Pump
Model: PN Mud Pump
Application: can be used for transporting solid-liquid two-phase fluid with mine
Product overview

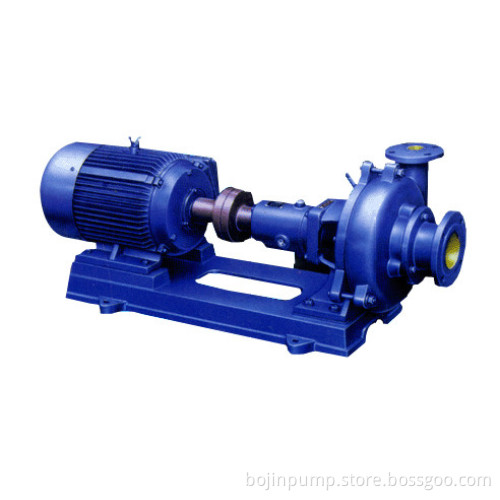

Mud pump is a Horizontal single-stage single suction cantilever centrifugal slurry pump, can be used for transporting solid-liquid two-phase fluid with mine. Can also be used in building materials, paper, food, feed and other departments to transport all kinds of slurry. The maximum transmission, concentration of 50-60% (weight)
Flow manufacturing using wear-resistant alloy material PN type slurry pump, long life. 6 "and 6" mud sand below the impeller and the shaft is connected with the screw, 8 "and 8" above the mud pump used in key connection. The gap between the blade and sheath and the impeller can be adjusted, to maintain efficient work. 8 "and 8" above the mud pump, the pump body is large, using open structure form level, the disassembly and the maintenance are convenient.
Shaft seal packing seal used in general, work to win into higher than operating pressure of 1 kg / square cm shaft seal water.
Model PN mud pump, according to the transmission direction, rotates in counterclockwise direction (including 1, 2, 3PN clockwise) Ye Lun with a screw connected with the shaft, if the rotating in opposite directions, Ye Lun will fall off from the shaft, causing the accident.
