Gold Color Metalized PET Thermal Lamination Film Roll
- Min. Order:
- 500 Kilogram
- Min. Order:
- 500 Kilogram
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, TIANJIN, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 5000ton |
| Supply Ability: | 5000TON |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP,DDP,DDU,Express Delivery |
| Certificate: | SGS |
| HS Code: | 3920620000 |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,TIANJIN,Shenzhen |
Gold Color PET Metalized Thermal Lamination Film
Gold Color Metalized PET Film are polymer films coated with a thin layer aluminum. It offers the glossy metallic appearance of an aluminum foil at a reduced weight and cost. Our Gold Metalized Thermal Lamination Film is kind of Color Metallized Film.We have two normal colors , Gold and silver color , silver and silver color .The Raw material is: EVA Coated PET Film, EVA Coated Metallized Polyester Film. Maximum width: 2450mm.Thickness: usually is 12um,16um .17um,18um.Of course,it is adjustable to customer's requirements .
Gold Metalized Thermal Lamination Film performance
● uniform color, bright, shiny.With good stiffness and excellent printing performance.
● excellent mechanical properties, suitable for subsequent processing.
● substrate film high gloss, good metal effect.
● good barrier performance, high bonding strength.
Thermal Gold Metalized Pet Film applications:
1. Widely used in composite, onion powder, ribbon, windmill, craft hanging decoration, etc.
2.Widely used for paper and paperboard lamination/thermal lamination, achieve a good decorative effect.
Specification:
Color:Silver or Gold
Raw material: Gold Metallized PET +EVA film
Thickness: usually is 12um,18um. 19mic, 23mic
Maximum width: 2450mm
Uses: packaging, printing, laminating, and decorating
|
Metallized PET film |
||||
|
Properties |
Units |
Typical Values |
Test Methods |
|
|
Thickness |
μm |
12 |
DIN53370 |
|
|
Tensile Strength |
MD |
MPa |
218 |
DIN53455-6-5 |
|
TD |
231 |
|||
|
Elongation at Break |
MD |
% |
111 |
DIN53455-6-5 |
|
TD |
114 |
|||
|
Coefficient of Friction |
F/F-μs |
- |
0.48 |
DIN53375 |
|
F/F-μk |
0.48 |
|||
|
Heat Shrinkage |
MD |
% |
2.0 |
BMSTT11 |
|
TD |
0.8 |
|||
|
Thickness of Aluminum Layer |
Ω/ |
2.0 |
Resistance Tester |
|
|
Optical Density |
OD |
2.0 |
MACBETH TD904 |
|
|
Adhesion of Aluminum Layer |
% |
100 |
3M Gummed Tape |
|
|
Tolerace of Aluminum Layer |
% |
6 |
Resistance Tester |
|
|
Gloss |
% |
132.6 |
ASTM D2457 |
|
|
Surface tension |
Dyne/cm |
60 |
ASTM D2578 |
|

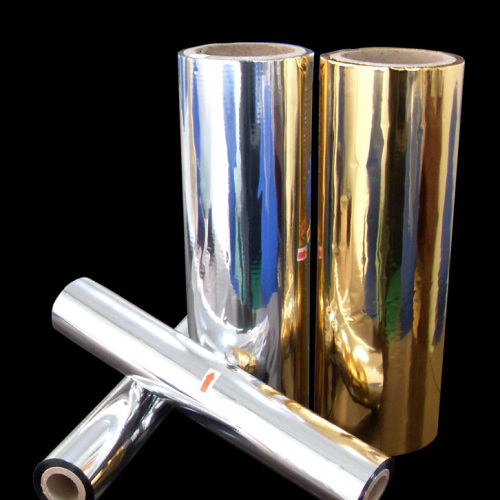

Product show:
Our company is establised in 2004. we have much experience in plastic film.Our main products including 1.Metallized Film (VMPET,VMBOPP,VMPE ect) 2.PET Color film (PET Milky White Film , PET White Film , PET Black film ect ) 3.3D Pepper Ghost Foil. These products are widely applied to the packaging and printing of the industries including electronical products, food, commodities, medicine, labels, gifts etc.If you need anything, please feel free to contact me.
