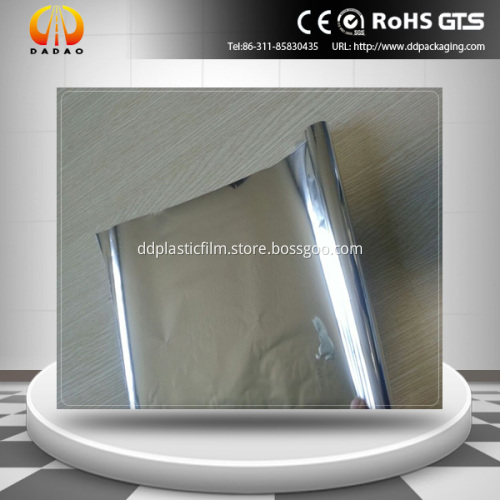

One Side Heat Sealing Metallized CPP Film
-
$2.70≥1000 Kilogram
- Min. Order:
- 1000 Kilogram
- Min. Order:
- 1000 Kilogram
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- Tianjin , Shanghai , Qingdao
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 10000kg/month |
| Supply Ability: | 5000tons |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Certificate: | SGS |
| HS Code: | 3920209090 |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | Tianjin ,Shanghai ,Qingdao |
One Side Heat Sealing Metallized CPP Film
Types of CPP film
1.General CPP film
2.Metallizable CPP film
3.Retort CPP film
Usage of CPP film
1.Packing materials for food/drugs/fibers/daily supply
2.Lamanation base film, used as heat seal inner side for lamitation film which requires heat-resistant
3.Vacuum metalizing base film
Specification:
|
Vacuum Metallized CPP Film(VMCPP) |
|
|
Material |
CPP(cast polypropylene) |
|
Type |
Metallized |
|
Color |
Silver |
|
Thickness |
12um-50um(micron) |
|
Width |
100mm-3200mm |
|
Length |
3000m-12000m |
Technical index
|
Item |
Unit |
Typical Value |
Test Method |
|
|
Membrane Thickness |
μm |
25 |
ASTM D-374 |
|
|
Tensile Strength |
MD |
Mpa |
54 |
ASTM D-882 |
|
TD |
33 |
|||
|
Elongation At Break |
MD |
% |
565 |
ASTM D-882 |
|
TD |
612 |
|||
|
Thermal Shrinkage |
N/15mm |
11.2 |
ASTM D-882 |
|
|
Wetting Tension |
mN/m |
40 |
ASTM D-2578 |
|
|
Friction Coefficient(For Bare Film) |
-- |
0.62 |
ASTM D-1894 |
|
|
Haze(For Bare Film) |
% |
2.7 |
ASTM D-1003 |
|
|
Gloss(For Bare Film) |
% |
|
ASTM D-2457 |
|
|
Aluminum Thickness |
A |
380 |
|
|
|
Ω/ |
1.53 |
GB/T 15717 |
||
|
O.D |
1.98 |
X·Rite361 |
||
|
(Light Transmission) VLT |
|
ASTM D 1746 |
||
|
Aluminum Uniformity |
% |
8 |
|
|
|
Adhesion of Aluminum Layer |
% |
Aluminum peel<2 |
3M Tape |
|
|
Moisture Penetrate(38°C,90%RH) |
g/m2·24hr |
0.5 |
ASTM E96 |
|
|
Oxygen Penetrate (23°C,0%RH) |
cm3/m2·1atm·24hr |
45 |
ASTM D1434 |
|
Product:
We have been in plastic film line for more than 17 years and we have much experience in plastic film of all different application.
our main products are all kind of function film . main 4 seirers
a. hologram projection film
1. 45 degree hologram projection film
b.PET function film
1.PET color film 2. PET milky white film ,3white pet film 4. black PET film 5.Matte PET film 5.coated PET film 6.UV coating PET film etc
C. Metallized film
Alox PET film, metallized pet film,cu metallized PET film etc
d electrical insulation film
PI film ,perforated polyimide film etc
