Product Description

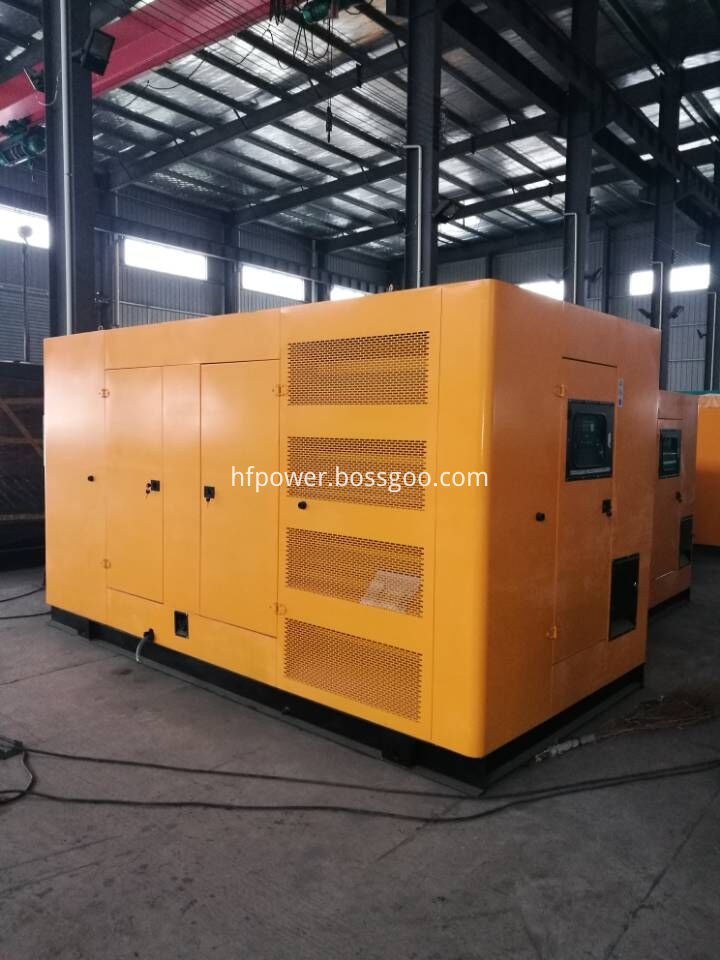

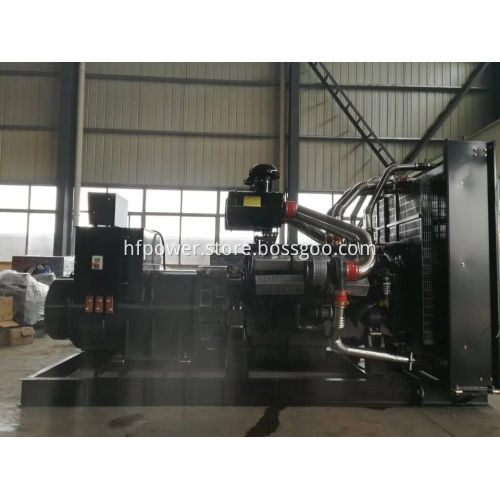

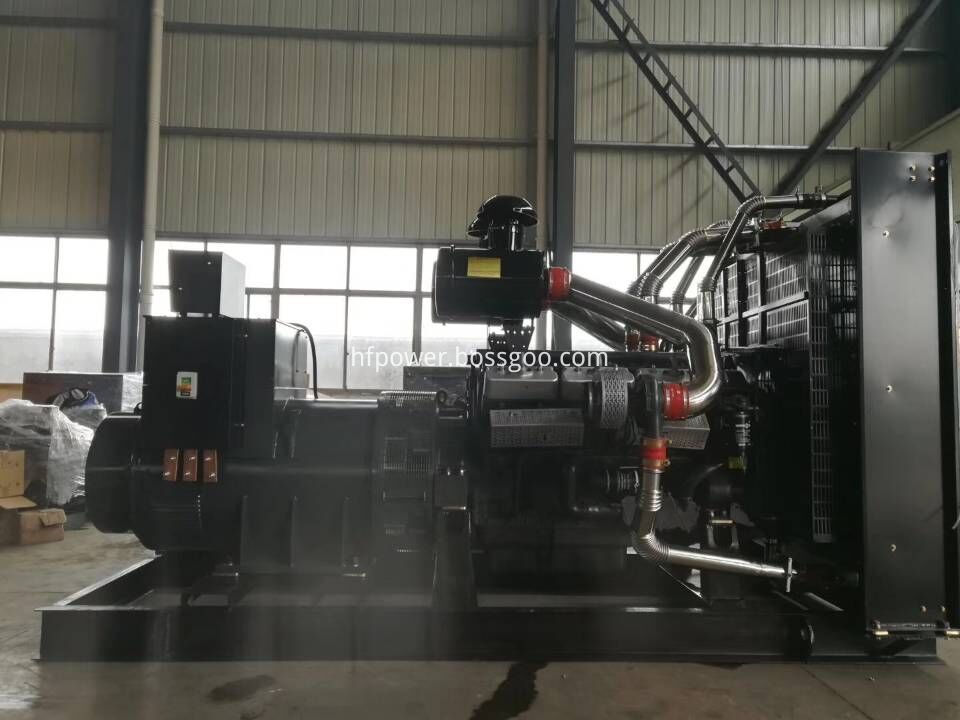

Shangchai 550KW Diesel Generator set

Unit operating environment conditions Unit technical indicators

Operating conditions: Outdoor Startup time 10S-30S

Maximum temperature +50°C Voltage fluctuation rate: ±0.5%

Maximum daily average temperature +40°C Frequency fluctuation rate:≤±0. 5%

The highest annual average temperature +30°C Voltage stabilization time:≤1S

Minimum annual average temperature -5°C Frequency stabilization time:≤1second

Relative humidity ≤95% at +25°C Waveform distortion factor: ≤5S

Altitude: ≤1000 meters

Output power(KW)	550/610
Output capacity (KVA)	687.5
Power factor	0.8
Frequency(HZ)	50
Maximum electric output(A)	990
Dimension(mm)	390015001950
Net Weight(kgs)	4500
*Diesel engine*
Model	SDV610	Rated speed(RPM)	1500
Cylinder No.	12	Fuel grade	China 0#(light diesel)
Cylinder type	V type	Fuel consumption rate (g/kw.h)	229
BorexStroke(mm)	135/155	Lubricating oil specifications and grades	Above API-CD
Displacement(L)	26	Total lubricating oil capacity (L)	57
Compression	17:1	Max lubricating oil temperature (°C)	121
Thermostat temperature range(℃)	82-93	Max oil consumption (L)	57.4
Allow maximum back pressure (KPa)	6	Max temperature of smoke exhaust (°C)	650
Cooling method	Closed cycle water cooling	Min intake resistance (M3/min)	24.76
Total cooling water capacity (L)	76	Full load fuel consumption (g/kw.H)	229
Oil lubrication	Rotary oil	Dry air filter
Maximum coolant temperature (°C)	100/104	Gov	Electric
*Alternator*
Voltage adjustment range	≥±5%	Steady voltage regulation	≤±1.0%
Temperature rise	H	Voltage control method	AVR(SMAVC6307)
Insulation class	H	Overload capability	1.5 times 2 mins
Protection level	IP22	Short circuit capability	3 times 2 sec
effectiveness	93.60%	Cooling method	Self-cooling
Electromagnetic interference coefficient	THF<2%,TIF<50	Rotor type	Salient pole
