Flange Ground Screw Foundation For Photovoltaic Solar Energy
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Transportation:
- Ocean, Land
- Port:
- Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei China |
|---|---|
| Productivity: | 30000pcs/month |
| Supply Ability: | 1000pcs/day |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | GB DIN EN ISO1461-1999 |
| HS Code: | 73269090 |
| Transportation: | Ocean,Land |
| Port: | Tianjin |

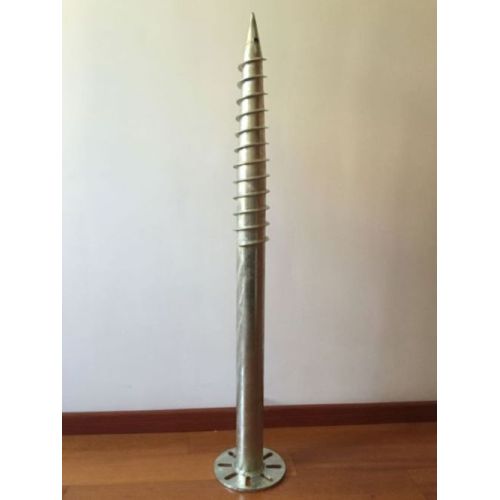

Flange Ground Screw is a very common kind of Ground Pile,Ground Screw with flange, flange size is 8*200 mm, or 6*160 mm , or according to clients' request.The shape of flange is round,square and hexagonal.Flange Screw Pile is widely used in the installation system of solar panels.
Material: S 235 carbon steel.
Length of the F Series Ground Screw: 550-6000 mm .
Ground Screw Pile's diameter: 48 mm, 68 mm, 76 mm, 89 mm, 114 mm or according to clients' request.
Thickness of pile: 2.75 mm, 3.00 mm, 3.75 mm, 4.00 mm.
Continuous welding with auto welding machine.
Surface treatment: High dip galvanized, according to DIN EN ISO 1461-1999 , thickness of coating zinc: more than 80 micron.
Advantages of Steel Ground Screw:
1.Easy install by spiral piling machine
2.No digging, no concrete, no waiting
3.Much convenient
4.Cost effective
5.Save time, no need concrete foundation
6.Suitable for different soil
Common size of Galvanized Ground Screw as follow:
|
Diameter(mm) |
Thickness(mm) |
Length(mm) |
|
76 |
2.75 |
1000 |
|
76 |
2.75 |
1200 |
|
76 |
3.0 |
1200 |
|
76 |
3.0 |
1500 |
|
76 |
3.0 |
1800 |
|
89 |
3.0 |
1500 |
|
89 |
3.0 |
1800 |
|
89 |
3.0 |
2100 |
|
114 |
4.0 |
1800 |
|
114 |
4.0 |
2100 |
|
114 |
4.0 |
2500 |
