4 Meter Ground Screw Foundation For Construction
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean, Land
- Port:
- TIAJIN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei China |
|---|---|
| Productivity: | 30000pcs/month |
| Supply Ability: | 1000pcs/day |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | GB DIN EN ISO1461-1999 |
| HS Code: | 73269090 |
| Transportation: | Ocean,Land |
| Port: | TIAJIN |

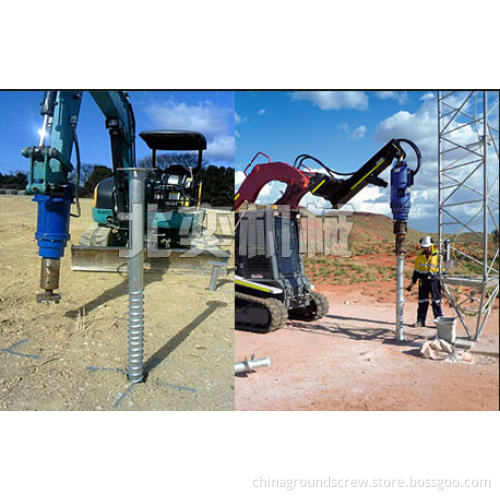

Our Ground Screw length can be from 550 mm to 6000 mm,the Ground Screw Foundation no need digging for construction,very convenience for projects.Our Ground Screw system was designed and developed in Hebei China and has been used all over the world since 2007.Ground Screws can be used for a wide range of projects in the world,all year round and in any weather conditions.
Material of Ground Screw Anchor:S 235 carbon steel.
Length of the F Series Ground Screw:550-6000 mm.
Screw Pile's diameter:48 mm,68 mm,76 mm,89 mm,114 mm,according to clients' request.
Thickness of metal pipe:2.75 mm,3.00 mm,3.75 mm,4.00 mm.
Flange diameter:200 mm,220 mm,160 mm, thickness:8 mm or according to clients' request.
Surface treatment:High dip galvanized,according to DIN EN ISO 1461-1999,thickness of coating zinc:more than 80 micron.After hot dip galvanized,a dense zinc layer will be formed on the surface of Screw Piles,which can play a good anti-corrosion role in the external environment.
Common size of Galvanized Ground Screw as follow:
|
Diameter(mm) |
Thickness(mm) |
Length(mm) |
|
76 |
2.75 |
1000 |
|
76 |
2.75 |
1200 |
|
76 |
3.0 |
1200 |
|
76 |
3.0 |
1500 |
|
76 |
3.0 |
1800 |
|
89 |
3.0 |
1500 |
|
89 |
3.0 |
1800 |
|
89 |
3.0 |
2100 |
|
114 |
4.0 |
1800 |
|
114 |
4.0 |
2100 |
|
114 |
4.0 |
2500 |
