No-dig Ground Screw Steel Screw Pile Spiral Pile
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean, Land
- Port:
- Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei China |
|---|---|
| Productivity: | 60000pcs/month |
| Supply Ability: | 2000pcs/day |
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | GB DIN ISO1461-1999 |
| HS Code: | 73269090 |
| Transportation: | Ocean,Land |
| Port: | Tianjin |

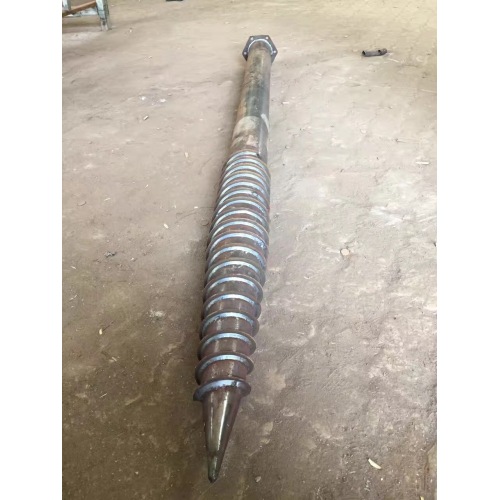

Ground Screws can be used for a wide range of projects in the world,all year round and in any weather conditions.Ground Screw Piles are a modern and cost-effective solution for creating foundation for building construction projects.Galvanizing Flange Screw Pile usually used for ground support for a rectangular array of solar panels.
F Series Ground Screw is common type of Ground Pile,and also a high sales volume of Ground Screw.With different shape flange:round flange,hexagon flange,square flange & with or without nut and reinforced washer, mainly for Solar energy system. some countries called that as Ground Screw Anchor.
Main specifications and parameters of Screw Pile as follow:
Material of Ground Screw
S 235 carbon steel
Length of Ground Screw
550-6000 mm
Diameter of pipe
48 mm,68 mm,76 mm,89 mm,114 mm or according to clients' request
Thickness of pipe
2.5 mm,2.75 mm,3.0 mm,3.75 mm,4.0 mm
Flange size
200*8 mm,160*8 mm,220*8 mm or according to clients' request.
Surface treatment of Ground Screw Piles: High dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron.After hot dip galvanizing treatment of the Steel Ground Screw has corrosion resistance in the external environment.
