Galvanized Steel Ground Screw Helix Screw Pile

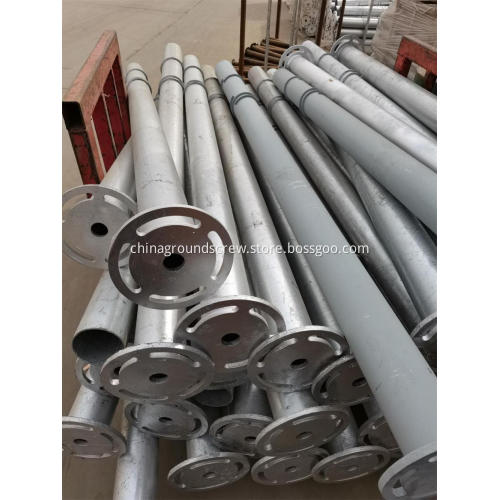

Ground Screw Piles not only replace traditional concrete foundation but also useful for any construction you could ever imagine.Flange Screw Pile are connected to the superstructure by flanges and can be reinforced with screws.Flange shape can be selected according to need,there are round,square,hexagon and so on.Circular flanges are common.mainly used on solar energy ground mounting,garden fence,agricultural fence,grape garden,lighting pole,container house, temporary building.

Advantage of S 235 carbon steel Galvanized Ground Screw are as below :

• No excavating, digging or concrete
• Installs within minutes
• Instantly loadable with no waiting time
• Stable, durable, storm proof, water proof
• Environmentally friendly, ecological, and sustainable
• No damage to surrounding landscape
• Fast and inexpensive to dismantle and relocate
• Can be installed into sealed surfaces
• Not dependent on weather conditions

We can make different design and size Ground Screw Piles according to the request of clients, size from 300 mm to 6000 mm.Cutting pipe length with automatic cutting pipe machines and welding with automatic welding robot.

Some size of Flange Ground Screw are like the below:

76*3*1000*200*8

76*3*1200*200*8

76*3*1500*200*8

76*3*1800*200*8

76*3*2000*200*8

76*3*2500*200*8

89*3.75*1200*200*8

89*3.75*1800*200*8

89*3.75*2000*200*8

114*4*1500*200*8

114*4*1800*200*8

114*4*2000*200*8

114*4*3000*200*8
