Spiral Screw Pile For Construction Foundation
- Min. Order:
- 500 Piece/Pieces
- Min. Order:
- 500 Piece/Pieces
- Transportation:
- Ocean, Land
- Port:
- TIANJIN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei China |
|---|---|
| Productivity: | 60000PCS/per Month |
| Supply Ability: | 2000PCS/per Day |
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | GB DIN EN ISO1461-1999 |
| HS Code: | 73269090 |
| Transportation: | Ocean,Land |
| Port: | TIANJIN |
Fast to install,strong,lightweight,low cost,reusable,low mess and kind to the environment.....There are many unique advantages to the Ground Screw.With Ground Screw Piles you can quickly an easily start a stable foundation and begin construction immediately.
Our Ground Screw Anchor made of S 235 carbon steel with good quality .We can make different size Ground Screw Piles according to the request of clients,size from 550 mm to 6000 mm .
Material: S 235 carbon steel.
Length of the F Series Ground Screw:550-6000 mm.
Ground Screw Pile diameter:48 mm,68 mm,76 mm,89 mm,114 mm,according to clients' request.
Thickness of steel pipe:2.75 mm,3.00 mm,3.75 mm,4.00 mm.
Flange diameter: 200 mm or 220 mm.Thickness: 8 mm or according to clients' request.

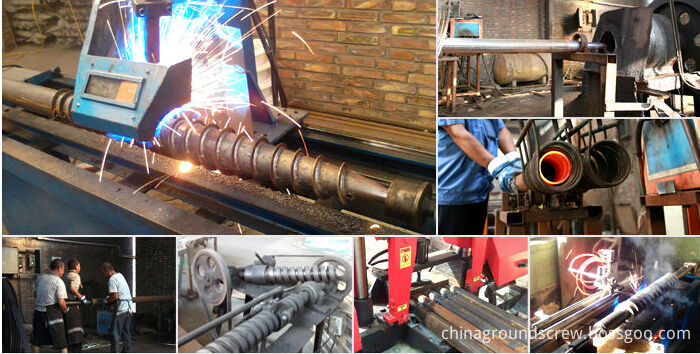

Automatic pipe cutting machines and automatic welding robot has put into use in the production line of Ground Screw Pile .
Common size as follow:
|
Diameter(mm) |
Thickness(mm) |
Length(mm) |
|
76 |
2.75 |
1000 |
|
76 |
2.75 |
1200 |
|
76 |
3.0 |
1200 |
|
76 |
3.0 |
1500 |
|
76 |
3.0 |
1800 |
|
89 |
3.0 |
1500 |
|
89 |
3.0 |
1800 |
|
89 |
3.0 |
2100 |
|
114 |
4.0 |
1800 |
|
114 |
4.0 |
2100 |
|
114 |
4.0 |
2500 |
