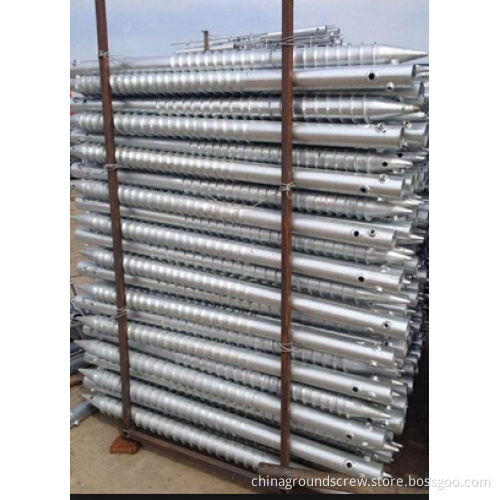

Hot Dip Galvanized Ground Screw Pile Screw Anchor
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean, Land
- Port:
- TIANJIN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei China |
|---|---|
| Productivity: | 30000pcs/month |
| Supply Ability: | 1000pcs/day |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | GB DIN EN ISO1461-1999 |
| HS Code: | 73269090 |
| Transportation: | Ocean,Land |
| Port: | TIANJIN |
Galvanized Ground Screw for solar energy system is very popular in all the markets,the length of Ground Screw Piles can be long or short.Suitable for different soil.Spiral piles can not only replace the traditional concrete foundation, but also apply to large,long structures,such as walkways and terraces and so on.
With the use of automatic cutting pipe machines and automatic welding robot,the excellent quality of Ground Pile products has been recognized and praised by customers.
N Series Ground Screw without flange,but with Nut and reinforced washer,usually with 3 or 6 nut,and 2 pieces reinforced washer to reinforce strength.
The basic parameters of Ground Pile are as follow:
Material
S 235 Carbon Steel
Length of Ground Screw
550 mm-6000 mm
Diameter of pipe
48 mm,68 mm,76 mm,88.9 mm,114 mm
Nut
M 10,M 12, M 14, M 16 or according to clients' request
Thickness of pipe
2.75 mm,3.0 mm,3.75 mm,4.0 mm
Surface treatment:High dip galvanized,according to DIN EN ISO 1461-1999,thickness of coating zinc:more than 80 micron.
Helix Ground Screw production chart:Cutting pipe length according to design,forming the pipe according to the design,welding nut, flange,blade and assemble,acid pickling and hot dip galvanized treatment,QC and packing , shipments.
Range of application:Palm garden,solar energy system,garden or farm fencing,timber construction,simple house construction,advertising board and banner,traffic signature,lighting pole,flag pole,event structure,sheds and containers &.
