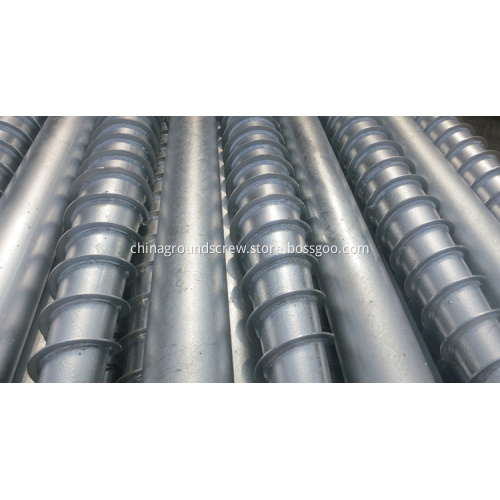

Ground Mount Ground Screw Support Ground Screw Piles

We have made Ground Screw Piles for more than 15 years with more experience,the raw material for the production of piles is hollow steel pipe,cutting the hollow pipe(with automatic pipe cutting machines)in sizes as customer's request.Make the pipe heated and softened in tail end with heating machine as pictures.Put the heated pipe into the pipe-shrinking machine as picture promptly to make the tail end into cone-shape.....

Ground Screw Pile are widely used in photovoltaic square array brackets-solar mounting construction,such as Galvanized Nut Ground screw,Flange Ground Screws Foundation for Solar Panel.The Ground Pile serves as the bottom support of the bracket,and the upper bracket can be fixed with screws,or the flange of the Screw Piles is connected with the upper bracket.

Advantage of Ground Screws Anchor: easy install by spiral piling machine, no digging, no concrete, no waiting, much convenient, cost effective, save time, no need concrete foundation, suitable for different soil.

Helical Ground Screw for solar panel specification :

76*3*1200 MM

76*3*1500 MM

76*3*1800 MM

76*3*2000 MM

76*3*2100 MM

76*3*2500 MM

76*4*1500 MM

76*4*2000 MM

89*3.75*1500 MM

89*3.75*1800 MM

89*3.75*2000 MM

102*4.5*1800 MM

102*4.5*2000 MM

114*4*2000 MM
