Electro Galvanized Square Hole Welded Wire Mesh

Electro Galvanized Square Hole Welded Wire Mesh

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 50 Set/Sets

Min. Order:: 50 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China,(Main Land)
Productivity:	100000 sets per Month
Supply Ability:	100000 sets per Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001, SGS, CE
Transportation:	Ocean,Land,Air

Product Description

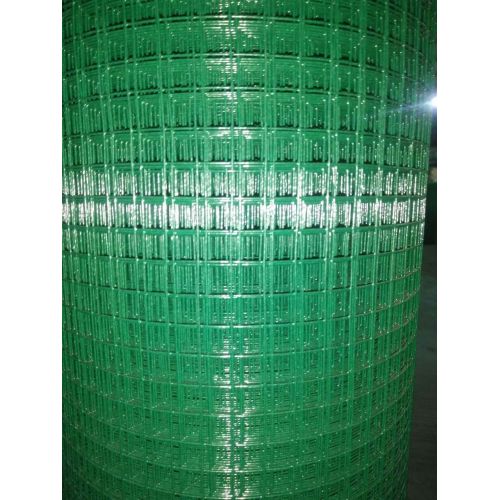

Welded wire mesh is used in industry and agriculture, building, transportation and mining for all such purposes as Poultry houses, Egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence. It is made through the process of automation and sophisticated welding technique. The end product is level and flat, with sturdy structure and even strength throughout, the netting shows no wear and tear when cutting off a part or under a stress.

Specification:

Specification List of Welded Wire Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1, Standard roll length: 30m; width: 0.5m to 1.8m 2, Special sizes available at request 3, Packing: in waterproof paper in rolls. Custom packing available at request.
