Thickness Rockwool Sandwich Panel For Metal Wall

1.Product Description

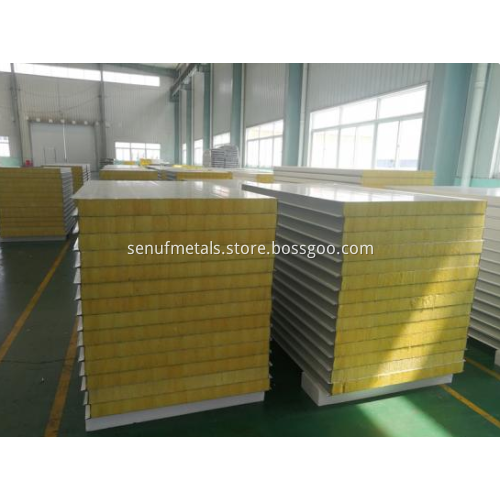

50-150mm Thickness Rockwool Sandwich Panel For Metal Wall Cladding System

2. Product Specification / Model

Product Introduction:
In order to meet the higher fireproof requirement of buildings, Wiskind has launched the high-quality rockwool sandwich wall panel.  It uses high-quality water insulation rockwool as the core. Through the super long precision double-track curing ,the product is excellent in terms of fire prevention, heat preservation, noise reduction and environmental protection.

Rock wool Specification
Material Category                                 Inorganic insulation material
Combustion Performance                    A
Heat Conductivity Coefficient              0.04~0.055 w/m·k
Density                                                 ≤150kg/m3
Temperature Endurance                      800℃
Water Absorption                               >200%

Product Parameters:
Brand of steel plates                            Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.
Painting of steel plates                        PVDF, SMP, HDP, PE; The top painting should be above 25μm.
Galvanized layer of steel plates           Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.
Thickness of steel plates                      0.14mm-0.6mm.
Thickness of core                                 50mm/75mm/100mm/120mm/150mm.
Density of core                                     90/100/120kg/m³
Effective width                                      950/1150mm
Panel Length                                         According to customers’ request

Performance Description:
1.Fire Prevention: High-quality water-proof rock wool and class-A fire-proof performance.
2.Thermal Insulation: The low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.
3.Sound Insulation: The sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.
4.Solid: The panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance,which can used as exterior protected construction and load-carrying construction.
5.Beautiful Design: Bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.
6.Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.
