Galvanized Metal Door Machine Slat Roll Forming Machinery

Galvanized Metal Door Machine Slat Roll Forming Machinery

   Roller Shutter Slat Roll Forming Machinery is to produce rolling doors of major equipment, the use of galvanized steel or different colors of color steel or aluminum as a raw material, production of color plate rolling gates brilliant color, do not fade, do not rust, fire cut off, easy deformation, strength 3 times higher than the aluminum door.

Main features of Galvanized Metal Door Machine

The advantages of Twin Lath Roller Shutter Forming Machine are as follows:

1. Accuracy profile,

2. Save space, more convenient,

3. Easy operation, low maintenance cost,

4. Stable and durable.

Detailed Images of Roller Shutter Slat Roll Forming Machinery

Machine parts

1. Galvanized Metal Door Machine Slat Roll Forming Machinery Guiding

2. Garage Roller Shutter Making Machine Rollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat treatment, with black treatment or Hard-Chrome coating for options,

Body frame made by 300# H type steel by welding.

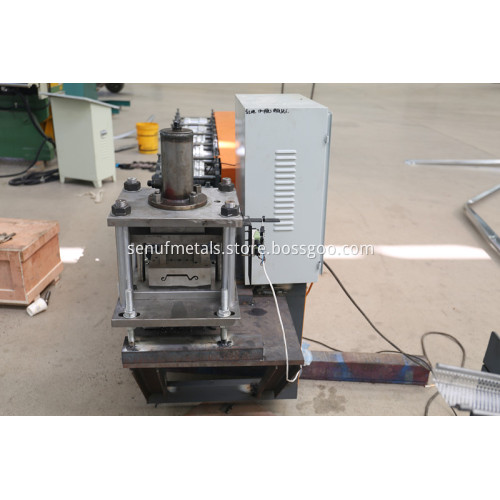

3. Galvanized Metal Door Machine Cutter

Made by high quality mold steel Cr12 with heat treatment, cutter frame made by high quality 20mm steel plate by welding

4. Twin Lath Roller Shutter Forming Machine PLC control system

5. Roller Shutter Slat Roll Forming Machinery Sample display

6. Aluminum shutter door guide frame roll forming machine Decoiler

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop,

Max feeding width: 300mm, coil ID range 470mm±30mm,

Capacity: 3 tons

7. Aluminum Door Frame Roll Forming Machine Run-out table

Un-powered, one unit

Other details of Galvanized Metal Door Machine Slat Roll Forming Machinery

Shafts manufactured by 45#, Main shaft diameter ⌀45/57mm, precision machined,

Motor driving, gear chain transmission, 14/19 steps to form,

Main motor: 4kw/5.5kw,

Frequency speed control, forming speed 12-15m/min.

PLC control system (Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron)
