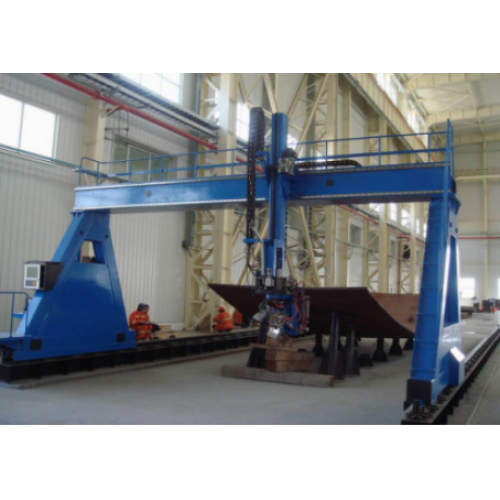

Curved plate bevel cutting machine
Introduction
Curved plate bevel cutting machine is suitable for the measurement,scribing,second precise cutting and variable angle double-sided groove cutting of the thick walled pressure vessels of ellipsoidal head plate,spherical tank ball and other types.Cutting Robot is adapted for quick,batch,high precision cutting of the large scale curved plate.
1.Cutting Robot can noncontactly measure of curved plate pressing without measurement templet and generate report automatically.
2.Cutting machine can automatically generate optimal cutting path according to the measured date and precisely scribe without scribing templet.
3.Cutting equipment can automatically cut the bevel of the curved plate without laying the track and track the thermal deformation of the curved plate cutting.It has the feature of high cutting precision.
Technical Parameter
Type
MPCR-6D6000
Host structure
Gantry,bilateral drive,Cartesian coordinates(XYZ)+the axis of rotation(UV)
Machine size
18000mm×6000mm×4500mm
Gauge (center)
6000mm
Range of running
Effective cutting length(X axis)
12500mm
accuracy
Х axis±0.5mm
Effective cutting length (Y axis)
4500mm
Y axis±0.5mm
Effective cutting length(Z axis)
1500mm
Z axis±0.2mm
The rotation range of U axis(horizontal axis)
360°±45°
U axis(horizontal axis)±10`
The range of V axis (angle of cutting gun )
±135°
V axis±10′
The range of Vaxis(the spin axis of double-cutting gun)
±90°
W axis±10′
Pictures of Products
Packaging & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received
