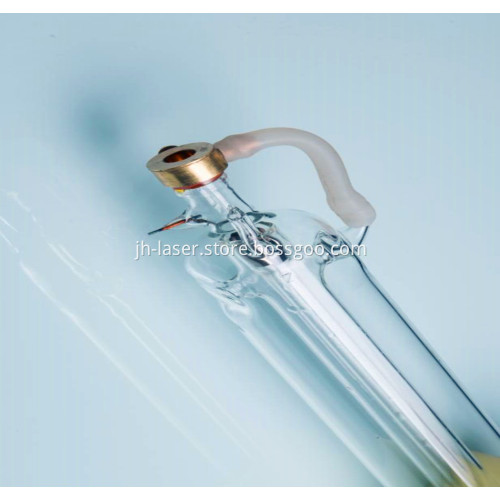

80W co2 glass laser tube

   Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate.

   1) In order to fully circulate the cooling water of the laser tube, it is necessary to ensure that the water flow enters from the low point and drain away from the high point under the pressure of the water so as to achieve the cooling of the entire laser tube.

   2) If the flow direction is opposite, it is possible that the cooling water can not fill the whole pipe,resulting in poor cooling,power reduction and the phenomenon of tube burst.

   3)If there is air bubbles in the laser tube,before the dimming,lift the water outlet side,until the bubble is completely discharged, and then fixed laser tube,please be careful not to allow residual bubbles in the laser tube.On the one hand, it will affect the light effect, on the other hand, it will lose the laser power. If the laser tube is poor cooling caused by bubble for long time, it may burst.

JH1660 Main parameters
