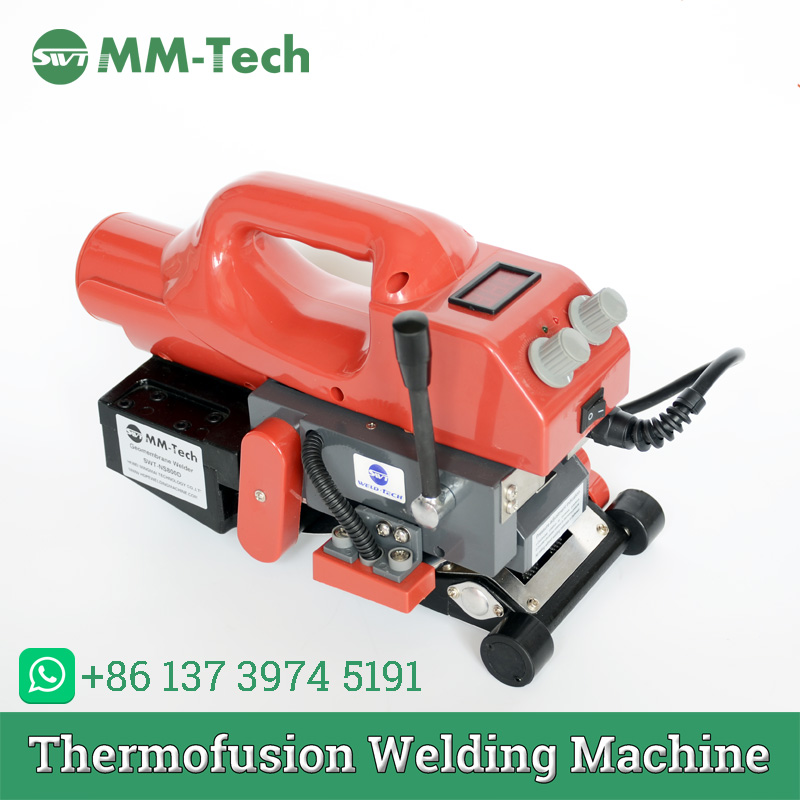

Plastic Automatic Climbing Welding Machine

SWT - NS800D Plastic Automatic Climbing Welding Machine adopts advanced hot wedge strcuture.With its high power,high speed and pressure,it welds 0.2mm-1.5mm thickness hot melting materials such as HDPE,PP and thermoplastic.This Geomembrane Wedge Welder is specially desgined for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof constructions and other waterproofing projects.

Membrane Climbing Welding machine ,is an Automatic Hot Wedge Welder for overlap welding and manufacturing of films and geomembrane liners in tunnels as well as earthwork and civil engineering. The heat is transmitted by using the best combination of contact and hot air. Especially well-suited for overhead welding in install geomebrane, civil engineering, tunnel engineering.

SWT-NS800D

Geomembrane Welding Solutions with stepless adjustable temperature and drive.



Technical Parameters For SWT-NS800D Plastic Welding Machine Geomembrane Welder Hot Wedge Electric Welder
Voltage:		220V/110V
Frequency:		50/60Hz
Power:		800W
Welding speed:		0.5-5m/min
Heating temperature:		0-450°C
Thickness of material:		0.2mm-1.5mm
Overlap width:		12cm
Welding width:		15mm×2, interior cavity 15mm
Seam strength:		≥85% base material (tensile resistant in shear direction)
N.W/G.W:		5.5/9kgs
Insulation class:		class II



Geomembrane Welding Machine International Warranty:24 months

Any parts borken or does not work under normal operating,we are free to provide.
