Manual Butt Fusion Welding Machine SWT-B160/50MS

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT, CIP

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: SHANGHAI, NIGNBO, QINGDAO

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	HEBEI,CHINA
Productivity:	500SETS
Supply Ability:	100SETS
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT,CIP
Certificate:	CE,ISO
HS Code:	85158090.90
Transportation:	Ocean,Land,Air
Port:	SHANGHAI,NIGNBO,QINGDAO

Product Description

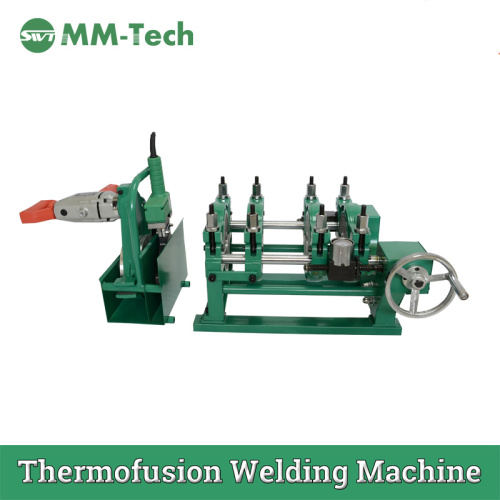

Manual Butt Fusion Welding Machine SWT-B160/50MS

MM-Tech supplies Manual Butt Fusion Machines composed of basic frame,electric planing tool, heating plate and support for planing tool and heating plate. The Butt Fusion Welding Machine adopts hydraulic technology to move the clamps that hold the pipe during the butt fusion process. The heater and trimmer are put into the machine frame.

MM-Tech Butt Fusion Welding Machines comes with all latest features such as Latest Hydraulic Unit, Pressure Guage, Automatic Timer with Alarm, Automatic Temperature Contorller, Pressure Relief Valve, Pressure Regulator, High Quality Heater / Mirror with Stand, Trimer or Planning Tool & Clamps of various sizes. We are the largest importers of the Butt Fusion Welder assembly parts and use the Imported Spares with latest technology to give optimum result and efficient output with minimal cost. We are into Manufacturing & Assembly of both Manually Operated Machines and Fully Automated Machines for Welding HDPE Pipes.

160 50m

Application and Features

1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.

Technical specifications for Manual Butt Fusion Welding Machine SWT-B160/50MS
Welding ranges	50mm - 160mm(2''-6''inch)
Ranges of application	PE,PP and PVDF
Working voltage	~220V ±10%,50/60Hz
Total power	1.7 kW, including:
Planning tool	0.7 kW
Heating plate	1.0kW
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature	≤±7°.
Environment temperature	-10° ~ 45°

Electronic count-down timer for heating and cooling time.
Whole machine consists of basic frame, heating plate, planning tool and support (for planning tool & heating plate)
Optional	Flange stub;
	Narrow clamps;
	Single clamps;

Company Profile

Greeting from MM-Tech in China! MM-Tech is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China.

Our main products: butt fusion machine,socket fusion machine,electrofusion machine, hot air welders,hot air welding machine, extrusion welders, geomembrane overlap wedge welders,band saw,cutting machine,& welding accessories.

If you are interested in any of our products, or require any further information, please feel free to contact us today.You are welcome to cooperate with us to create a new chapter together. Thermoplastic welding equipment's One stop sourcing platform,MM-Tech will serve world thermoplastic material industry. Make MM-Tech your first choice when sourcing for your requirements.

Hydraulic Butt Fusion Welding Machine Services

The butt fusion welder was designed in according to the international standard : ISO21307:2011(E),ISO12176-1 and DVS2207-1(08/2007).

International Warranty:24 months

Any parts borken or does not work under normal operating,we are free to provide.
