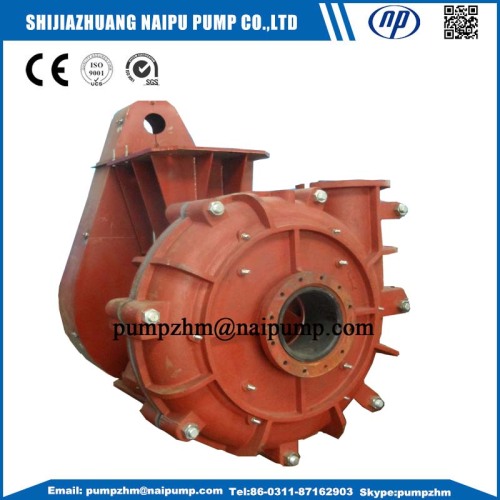

14/12 horizontal slurry pumps

Features of 14/12  slurry pump :

Suction diameter:14inch(350mm) discharge diameter: 12inch(300mm)

Flow rate of 14/12  slurry pump: 10-800L/S, total head of 14/12  pump: 10-70m. Wet end material of 14/12 slurry pump: High chrome(A05,A07,A49,A51) And elastomer rubber(R08,R26,S31,S42,etc.) And we also produce Stainless steel material.

Construction features of 14/12  slurry pump

1)Double casings design centrifugal slurry pump, wide passage for solids;

2)Bearing assembly & frame: Both standard & high capacity typies available.  A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy duty roller bearing are housed in a removable bearing cartridge. Pump body is fastened with the frame by minimum bolts. Impeller adjustment is provided in a convenient position below the bearing assembly;

3)Impeller & liner material: high chrome white iron, rubber, etc;

4)High efficiency impeller available: up to 86.5% for certain type;

5)Interchangeable wet parts material: High chrome alloy metal: PH: 5-12; natural rubber: PH: 4-12;

6)Shaft seal: Packing seal, centrifugal seal, mechanical seal;

7)Discharge branch: 8 positions in each 45°;

8) Driving type: V-belt, flexible coupling, gearbox, hydraulic coupler;

3/2C horizontal slurry pump, 3/2C centrifugal slurry pump,3/2C centrifugal slurry pump in China, 3/2C centrifugal horizontal slurry pump, 3/2C heavy duty slurry pump, 3/2C Coal mine slurry pump, 3/2C mine dewatering pump.

Performance curve of 14/12  series horizontal slurry pump

Production process of our pumps  14/12ST slurry pump

OEM slurry pump and parts:
