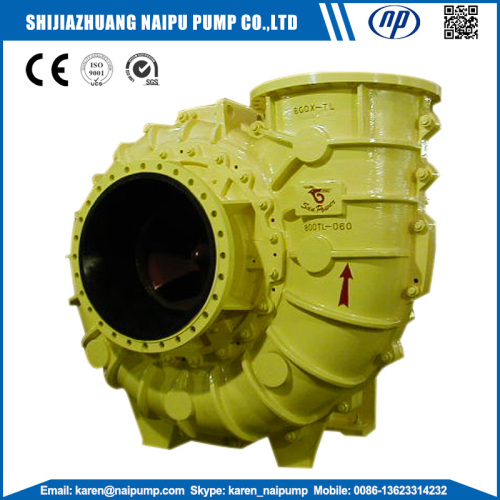

600X-TL Desulphurization Chemical Pumps

$5000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express, Express

Port:: Tianjin, Qingdao, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	200sets per month
Supply Ability:	200Sets per month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery
Certificate:	ISO , CE
HS Code:	8413709990
Transportation:	Ocean,Land,Air,Express,Express
Port:	Tianjin,Qingdao,Guangzhou

Product Description

600X-TL(R) Desulphurization Pumps

Series of TL(R) Desulphurization Pump
D: 350-1000mm
Q: 1500-14000 m3/h
H: 12-32m
Technical Chracteristics

1. The wearing parts adopted with CFD (Computational Fluid Dynamics) so as to designed reliability and high efficiency.
2. The position of the impeller can be changed by adjusting bearing assembly and the pump Unit can be in efficiency operation state.
3. Pump is back disassembly type and needn't dismantle the pipe connection so as to ensure Structure is simple and easy to maintain.
4. Pump head use double rows taper roller bearings and drive end use cylindrical roller bearings, Bearings are lubricated with recycled dilute oil, improved the bearing working condition and Increased service life.
5. Mechanical seal adopted with containers type mechanical seal to ensure reliable running.
6. It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes.
Applications and Features
The pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency. The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the long-life pump operation. Through adjusting the bearing components to change the impeller position in the pump chamber all-time high-efficient operation of the pump can be achieved. The pump is characterized by the back knock-down structure which is simple and advanced. It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable.

Product Overview:

TLR

Naipu Other Pump Types

Naipu Main Slurry Pump Models
NP-AH	NP-HH	NP-SP	NP-G	NP-AF	NP-L	NP-M
1.5/1B-AH(R)	1.5/1C-HH	40PV-SP(R)	6/4D-G	3QV-AF	20A-L	10/8R-M
2/1.5B-AH(R)	3/2D-HH	65QV-SP(R)	8/6E-G	4RV-AF	50B-L(R)	10/8E-M
3/2C-AH(R)	4/3E-HH	100RV-SP(R)	10/8F-G	6SV-AF	75C-L
4/3C-AH(R)	4/3X-HH	150SV-SP(R)	12/10G-G	8SV-AF	100D-L
6/4D-AH(R)	6/4X-HH	200SV-SP(R)	14/12G-G		150E-L
6/4E-AH(R)	6/4F-HH	250TV-SP	14/12T-G		300S-L
8/6E-AH(R)	6S-H		16/14G-G		350FF-L
8/6R-AH(R)	6S-HP		16/14TU-GH		450ST-L
10/8F-AH(R)	8/6S-H		18/16G-G
10/8ST-AH(R)	8/6S-HP		18/16TU-GH
12/10ST-AH(R)	8/6X-HP
12/10FF-AH(R)
14/12G-AH(R)
14/12ST-AH(R)
16/14TU-AH(R)
20/18TU-AH(R)
