NP-OH1 Process Pump

$2500.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

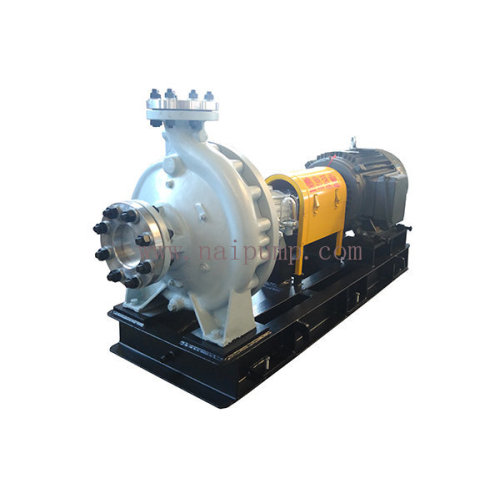

OH1 series pump Foot-mounted, single-stage overhung pump

The pump is a single-stage, horizontal, radially split volute pump. The pump body adopts foot support, and the impeller adopts single suction radial type. It is closed or semi-open. Fluid is sucked in from the axial direction and discharged from the radial direction.

Applications

Oil & Natural gas

Petroleum & Petrochemical

Pulp & Paper

Electric power industry

Chemical process industry

Water supply and drainage

General industries

Design Features

Flange configuration conforms to ANSI / DIN / ISO standards.

Mechanical seal chamber size conforms to ISO21049 (API682).

Closed,open,semi-open impellers are optional to meet different media conditions.

Double volute design can be selected to balance radial force when outlet size larger than 80mm.

Inducer structure is used when there is low NPSHa.

Impeller equipped with seal ring&balance hole,easy to replace wearing parts,mechanical seals and bearings service longer life.

Design Parameters：

Capacity (Q): 2～2600 m³/h

Head (H): ～250 m

Operating Pressure (P): ~2.5 Mpa

Operating Temperature (T):－20℃～+180℃

Certification

Quality Management System Certificate-2024

Environmental Management System Certificate-2024

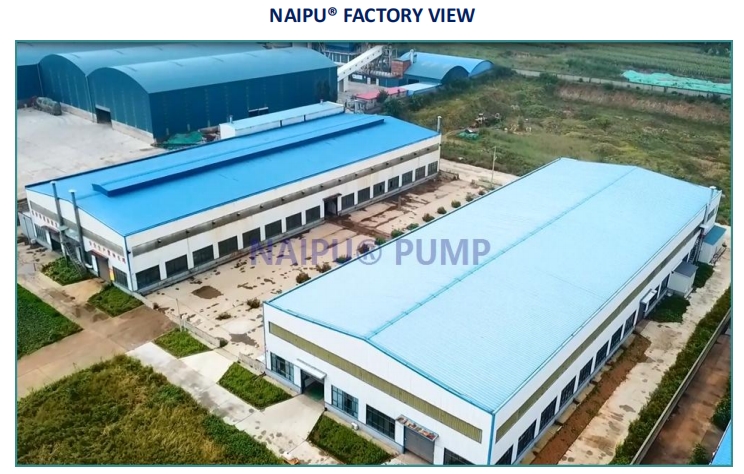

Our Company

Shijiazhuang Naipu Pump Co., Ltd is a modern pump industry enterprise engages in professional

manufactore, scientific research, develop, sales and service.

Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and

Dredging pump parts, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than 20 countries and regions. Our products have won unanimous favorable comments from the market.

The quality management systems of Naipu pump are accredited to ISO 9001:2000.

Naipu Pump also Accept OEM (Original Equipment Manufacture)Order,such as the shafts,shaft sleeves,bearing housing,etc. We also can design and produce the compelete pumps for your special need.
