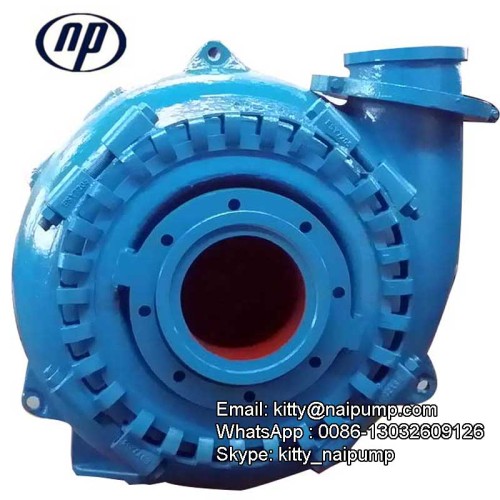

NAIPU Sand Pump Dredging Dredge Pump 6 Inch

 ShijiaZhuang NaiPu Pump Co.,ltd ,  is a professional Slurry Sand Gravel Pump supplier in China. We are engaged in the manufacturing and producing of heavy duty and severe duty slurry pumps and spare parts.

NAIPU Sand Pump Dredging Dredge Pump 6 Inch

Size: 8" x 6"
Capacity: 126-576m3/h
Head: 6-45m
Speed:800-1400rpm
NPSHr: 3-4.5m
Eff.: 60%
Power: Max.120kw
Handling solids: 127mm
Seal arrangement: Packing seal, Expeller seal, mechanical seal
Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc

SPare Parts for NAIPU Sand Pump Dredging Dredge Pump 6 Inch

Features:

Type  Sand Pump Dredging Dredge Pump 6 Inch are designed for continuously handling the most difficult high abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and river course, and other fields. Type GH are high head pumps.

Performance Chart

Pump   Model	Allowable Max. Power (kw)	Clear Water Performance
		Capacity  Q		Head   H   (m)	Speed   n(r/min)	Max.Eff. (%)	NPSH (m)	Impeller. Dia.  (mm)
		m3/h	l/s
6/4D-G	60	36-250	10-70	5-52	600-1400	58	2.5-3.5	378
8/6E-G	120	126-576	35-160	6-45	800-1400	60	3-4.5	378
10/8S-GH	560	216-936	60-260	8-52	500-1000	65	3-7.5	533
10/8S-G	560	180-1440	50-400	24-30	500-950	72	2.5-5	711
12/10G-G	600	360-1440	100-400	10-60	400-850	65	1.5-4.5	667
12/10G-GH	1200	288-2808	80-780	16-80	350-700	73	2.0-10.0	950
14/12G-G	1200	576-3024	160-840	8-70	300-700	68	2.0-8.0	864
16/14G-G	600	720-3600	200-1000	18-44	300-500	70	3.0-9.0	1016
16/14TU-G	1200	324-3600	90-1000	26-70	300-500	72	3.0-6.0	1270
18/16TU-G	1200	720-4320	200-1200	12-48	250-500	72	3.0-6.0	1067

Construction  :

Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-parts are made of Ni_hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360°. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.

Applications:

The gravel pump is used for river course, reservoir desalting, coastal reclamation, stretching, deep-sea mining and tailing acquisition etc. Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and course of rivers, and other fields.

Slag Granulation
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Sugar Beet

Related Sand Dredge Pump
6/4D-G  8/6E-G  10/8F-G 10/8S-G  12/10G-G 14/12G-G 10/8S-GH 10/8F-GH  12/10G-GH  14/12G-G 14/12T-G 18/16 T-G 450WN  500WN 700 WN

Application

The dredge pump mainly used in dredging and damming of the river and seas.

Naipu -Workshop

Naipu-Direct factory of Sand Dredge Pump.

Model Workshop --casting Work Shop-- Machining workshop--assembly workshop--stockage

NaiPu Main products

1. NAH , HH  L Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Vertical Froth Pump

8 .AHF Horizontal Froth Pump

9. TL(R) Desulphurization Pump

10.Clean Water Pump

11. OEM Casting machinery wear parts

Contact me

Shijiazhuang NaiPu Pump Co.,Ltd
Contact person:Kitty Liu

If there is any requirement for NAIPU Sand Pump Dredging Dredge Pump 6 Inch, weclome to contact me for more.
