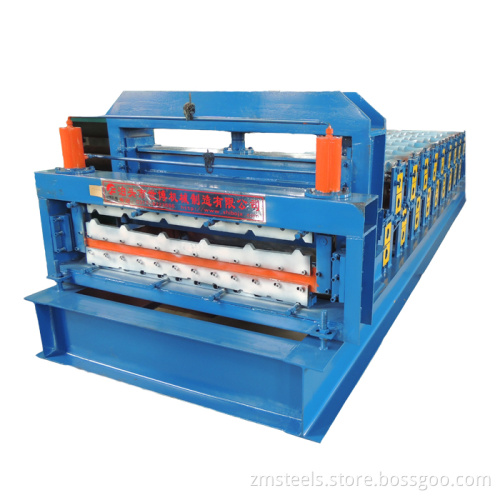

Double Layer Steel Sheet Rolling Machine

Our copany can provide Double Layer Rool Forming Machine. And this Double Layler Steel Sheet Machine can produce two kinds of shape roof panels at the same time. The roof panels have beautiful appearance and color of any RAL color.They are widely used in industrial and fast building, warehouse, hotels, exhibition halls, construction large span steel structure housing roof, and modern villas. This machine is mainly composed of passive feeding outfit, molding cuting device, hydraulic station and computer control cabinet.

Specifications:
Feeding material: PPGI steel coils
Thickness of the steel coils :0.3-0.8mm
Feeding width:1000/1200mm
Machine size: 6200mmX1700mmX1400mm
Diameter of the axle :down-Φ80mm/ up-Φ90mm
Rolling material: 45#
Rolling galvanization thickness:0.05 mm
Rolling stages:14-15 stages
Productivity:10-12m/min
Total power:5.5kw +3kw
Voltage:380V 60Hz 3phase or as requirement
Weight:about 4.5T
Base frame:350H steel
Side board thickness:16mm
Cutting blade: Cr12 with heat treatment
Cutting system: Hydraulic cutting system after forming
Control cabinet: PLC and frequency changer in it
Warranty:12 months limited warranty
Delivery: 30 days after receipt of advance payment
Package: Plastic packing and nude in the container
Payment Term: T/T, L/C, Trade assurance

Production process flow:

It is mainly composed of feeding system, adjustable device,  rool forming system, cutting equipent, press system and product output table.

Components:

1. Forming section:

Adjustable center of the forming rollers and of sufficient  length to prevent lateral movement of the strip on its entry to  flattener.

2. cutting:

cutting for forming: cut the sheet after roll forming to required length.

The cutting sequence is contained and controlled by the same PLC program.

material of blade: Cr12

cutting power by hydraulic: 4 KW

working pressure: 12MPa adjustable

3. automatic control system:

Automatic stopping of the equipment after completion of the cutting programme.

operating system language: English, Chinese, Russian.

The computer used to control length and quantity.

4. packing:

standard packing.
