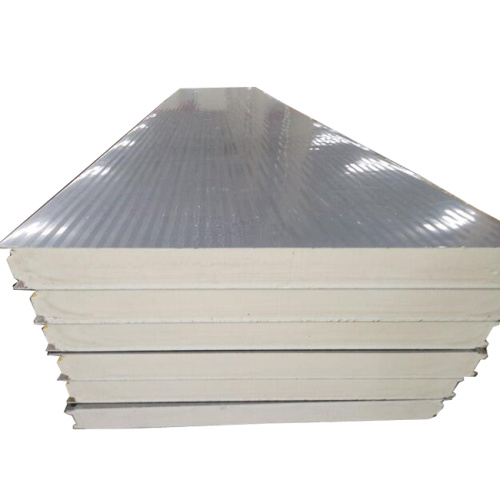

Factory Cheap Steel PU Sandwich Panel

Factory Cheap Steel PU Sandwich Panel

PU Sandwich wall Panels Profile

PU Sandwich roof Panels Profile

Name: PU Sandwich Panels

Raw Materials: polyurethane foam+ two layer Color Coating Galvanized Steel Coil

Advantage: Strong thermal insulation, heat preservation,easy install, waterproof,long service life,

                  strong bearing capacity.

Density of polyurethane foam : 30-50kg/m3

Working life:  Usually 5-20 years,we also have 20-30years.

Specification

Type:PU Sandwich Panels
       All accessories are available,like Self Tapping Screws, ridge tile, Roof Ventilator.,etc.

Total thickness: About 50-200mm

Effective width: 950mm

Length: any length

Top of panel

Material: Material

Thickness: 0.4-0.6mm

Thickness of the zinc: 40-100g/m2

Corrosion protection: Galvanized, Galvalume

Coating: PE paint

Thickness of coating: 15-20 micron

Color: As your request

Pattern: rib or plain type

Insulation

Optional foam Material: polyurethane foam

Thickness: 50/75/100/150/200mm

Density: 30-50kg/m3

Thermal conductivity: 0.02~0.03w/mk

Bottom of panel

Material: Material

Thickness: 0.4-0.6mm

Thickness of the zinc: 40-100g/m2

Corrosion protection: Galvanized, Galvalume

Coating: PE paint

Thickness of coating: 7-10 micron

Color: As your request

Pattern: plain type

Install&Production line:

Application:

Loading:

Common materials of sandwich panel:

Contact Us:
