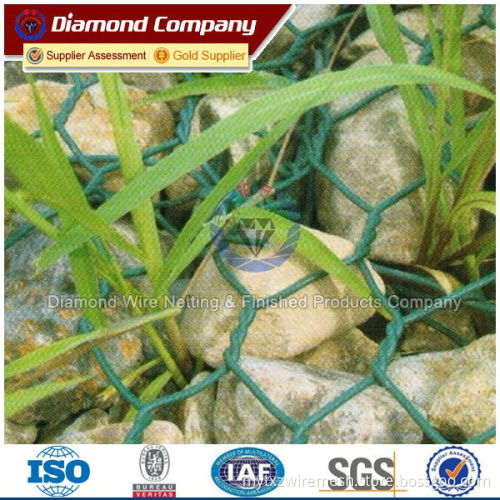

PVC coated Galvanized hexagonal woven wire mesh gabion price/ 3*1*1m double twist Gabion Box

PVC coated Galvanized hexagonal woven wire mesh gabion price/ 311m double twist Gabion Box

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Gabion box/mattress is made of hexagonal double twist wire mesh type 60 × 80mm/ 80 × 100mm.

In order to reinforce the structure. All mesh panel deges are selvedge with a wire having a thicker diameter than the mesh wire. The gabions is divided into cells by diaphragms at 1 meters.

Rock filled gabion at the project site to form flexible, permeablem monolithic structures to control and guide water and flood and project bridge, bank, seaside area and coil, etc

Gabion Specification

	Gabion box		Reno mattress
	galvanzied	PVC coated	galvanized	PVC coated
Mesh type	80 ×100		60 × 80
Mesh wire	3.05mm	2.7mm	2.2mm	2.2mm
Selvedge wire	3.8 mm	3.4mm	2.7mm	2.7mm
Lacing wire	2.2mm	2.2mm	2.2mm	2.2mm
PVC coating thickness		0.5mm		0.5mm

Gabion workshop

Gabion Size:

Gabion box size (Length×width×height)	Gabion mattress size (Length×width×height)
2×1×1m	3×2×0.17m
3×1×1m	4×2×0.17m
4×1×1m	6×2×0.17m
2×1×0.5m	3×2×0.23m
3×1×0.5m	4×2×0.23m
4×1×0.5m	6×2×0.23m
2×1×0.3m	3×2×0.3m
3×1×0.3m	4×2×0.3m
4×1×0.3m	6×2×0.3m

Gabion assembly

The folded units shall be taken out from the bundle and placed on a hard flat surface. Gabion shall be opened, unfolded and pressed out to their original shape. Front, back and end panel shall be lifted to a vertical position to form an open box shape. All edges of the diaphragms and end panels shall be tied by lacing wire.

The ends of lacing wires shall be anchored by 3 tight turns around the selvedge wires.

Gabion drawing

Application

PVC coated gabion box is filled with rock at the project site to form flexiable, permeable, monolithic structure to be used in civil engineering, road building, military application etc.

Typical uses including:

• Rock walls

• Retaining walls

• Revetments

• Weirs

• Military use

• River works

• Coastal defence systems

• Soil conservation

• Decorative

How long does gabion box life?

The gabion mesh is available with different coatings. The coating selection is made depending upon the environmental conditions. For example, a dry wall situation is likely to require only galvanized.

whereas a maritime environment or a longer design life would use a PVC coated galvanized. It is recommended that any structure in permanent contact with water (through immersion, proximity or spray) use PVC coated gabions.PVC coating can achieve 70 years when not exposed to severe environment.

Packaging & Shipping

For easy handling and shipping, the gabion are supplied folded flat. A color stripe applied on the side of each folded gabion identifies the size
