Heavey Hexagonal Gabion mesh for slope protection and levees/Gabion Mesh

Heavey Hexagonal Gabion mesh for slope protection and levees/Gabion Mesh

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

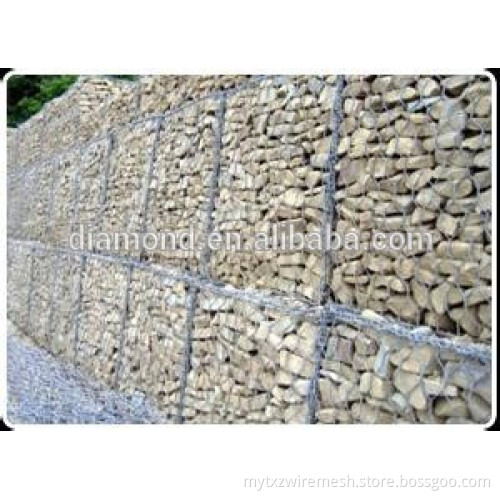

Gabions boxes are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

Features:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation.

Applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.

Main specifications of the 2*1*1Babion box/gabion basket

Item	Mesh Hole Type	Type 1: Wire diameter	Type 2: Wire diameter	Zinc coating	Tensile strength
Mesh wire	80 x100mm, 100 x120mm, or as request	2.7±0.1mm	3.0±0.1mm	240±10 g/m2	485 MPa max
Selvedge wire		3.4±0.1mm	4.0±0.1mm	260±10 g/m2	485 MPa max
Binding wire		2.2±0.1mm	2.2±0.1mm	220±10 g/m2	515 MPa ma

Specification of gabion Basket

Specification of Double twisted hexagonal mesh
Opening (mm)	Wire Diameter (mm)	PVC Wire Diameter Inside/outside (mm)	Max Breadth (m)
60X80	2.0-2.8	2.0/3.0-2.5/3.5	4.3
80X100	2.0-3.2	2.0/3.0-2.8/3.8	4.3
80X120	2.0-3.2	2.0/3.0-2.8/3.8	4.3
100X120	2.0-3.4	2.0/3.0-2.8/3.8	4.3
100X150	2.0-3.4	2.0/3.0-2.8/3.8	4.3
120X150	2.0-4.0	2.0/3.0-3.0/4.0	4.3
Others we can do as your requirement

Size				Note	Tolerance
Length(m)	Width(m)	High(m)	Diaphragm	Volume(m3)	L +/-3% W+/-5% H+/-5%
2.0	1.0	0.3	1	0.6
3.0	1.0	0.3	2	0.9
4.0	1.0	0.3	3	1.2
2.0	1.0	0.5	1	1.0
3.0	1.0	0.5	2	1.5
4.0	1.0	0.5	3	2.0
1.0	1.0	1.0	0	1.0
1.5	1.0	1.0	0	1.5
2.0	1.0	1.0	1	2.0
3.0	1.0	1.0	2	3.0
4.0	1.0	1.0	3	4.0
