Gabion bags/sack gabion bags (factory), with SGS,BV inspection certificates

Gabion bags/sack gabion bags (factory), with SGS,BV inspection certificates

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

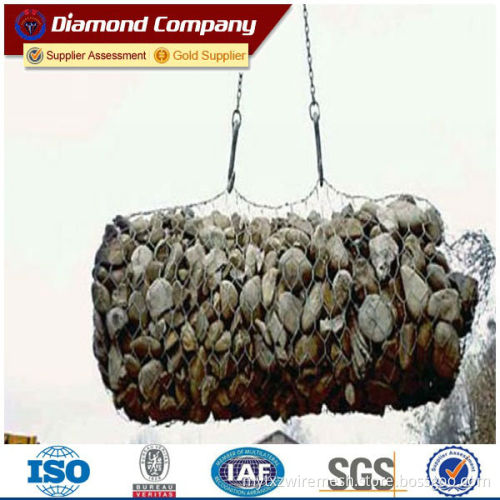

Gabion bags

Gabion bags are cylindrical unit which are made of double twisted steel woven wire mesh panel 5X7, 6X8, or 8X10cm according to ASTMA975-95 and EN10223-3.

The Wire mesh for making of gabion bags is hexagonal opening with the wire diameter of 2.7mm and selvedge wire of 3.4mm diameter.

How to use: gabion bags filled with stones are used in river control and various emergency works. Sack gabions are supplied with steel reinforcing wires inserted during the manufacturing process to facilitate closing during installation.

Dimensions and sizes of galvanized sack gabions can be customized.

Gabion Bags Specification Details show

GABION BAGS
Nominal Dimensions		Capacity (m³)	Units/Bundle
Length (m)	Diameter (m)	Capacity (m³)	Units/Bundle
2,0	0,65	0,66	25
3,0	0,65	1,00	25
Binding Wire : Sufficient wire is supplied for lacing and bracing operations.
Tolerances : Length, Diameter : ±5%

Application

1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8. Seaport project.

Gabion Bags Advantage:

- Economic. Just fill the stone into the gabions and seal it.

- Simple installation. No special technology needed.
- Weather proof under natural destroy, corrosion resistant.
- No collapse even under big scope of deforming.
- Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
- Good permeation can prevent the damage by hydrostatic.
- Less transport freight. It can be folded together for transport and further installation.
