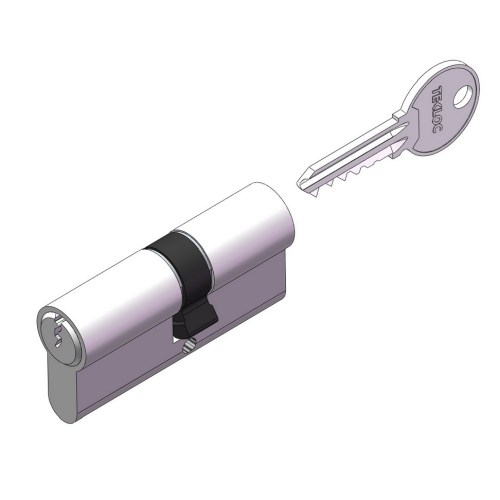

Euro profile cylinder Lock double sided
- Payment Type:
- L/C, T/T, D/P, Paypal
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 50000pcs/month |
| Payment Type: | L/C,T/T,D/P,Paypal |
| Incoterm: | FOB,CFR,CIF |
| HS Code: | 8301.4000.00 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
The pin tumbler lock is a lock mechanism that uses pins of varying lengths to prevent the lock from opening without the correct key.The the outer casing of the pin tumbler has a cylindrical hole in which the plug or metal pin is housed. The lock mechanism uses pins of varying lengths to prevent the lock from opening. To open the lock, the plug must rotate, this is done by using the correct key.The 5 cylinder slots that are set close together in a line. A metal pin, or "tumbler", fits closely to the walls of each of the slots. A second metal pin, or "driver," sits above the tumbler and is pushed down on the tumbler by a very small coil spring, which is permanently compressed as it sits inside the lock's enclosed case.When key is inserted into the lock, the key pushes the bottom pins into the right position, which allows the user to turn the key and unlock the lock.
CY301 With 30 ° cam, CY302 With 0 ° cam
1. 5 rounded-head picking proof pins will be 59049 combination
2. Spool counter pins resistant to attack.
3. Master Key or Key Alike are available
4. Finish: 01-Brass polished with varnish 02-Bright Nickel plated 03-Satin Nickel Plated
|
L |
A |
B |
PINS |
FINISH |
QTY/BOX |
|
54 |
27 |
27 |
4 |
01,02,03 |
12 |
|
56 |
28 |
28 |
5 |
01,02,03 |
12 |
|
61 |
28 |
33 |
5 |
01,02,03 |
12 |
|
66 |
28 |
38 |
5 |
01,02,03 |
12 |
|
60 |
30 |
30 |
5 |
01,02,03 |
12 |
|
65 |
30 |
35 |
5 |
01,02,03 |
12 |
|
70 |
30 |
40 |
5 |
01,02,03 |
12 |
|
70 |
35 |
35 |
5 |
01,02,03 |
12 |
|
75 |
30 |
45 |
5 |
01,02,03 |
12 |
|
80 |
30 |
50 |
5 |
01,02,03 |
12 |
|
80 |
40 |
40 |
5 |
01,02,03 |
12 |
|
90 |
40 |
50 |
5 |
01,02,03 |
12 |
|
90 |
45 |
45 |
5 |
01,02,03 |
12 |
|
90 |
30 |
60 |
5 |
01,02,03 |
12 |
|
100 |
30 |
70 |
5 |
01,02,03 |
12 |
|
100 |
40 |
60 |
5 |
01,02,03 |
12 |
