SMAH75-C Mining Slurry Pump

SMAH75-C Mining Slurry Pump

Product Profile

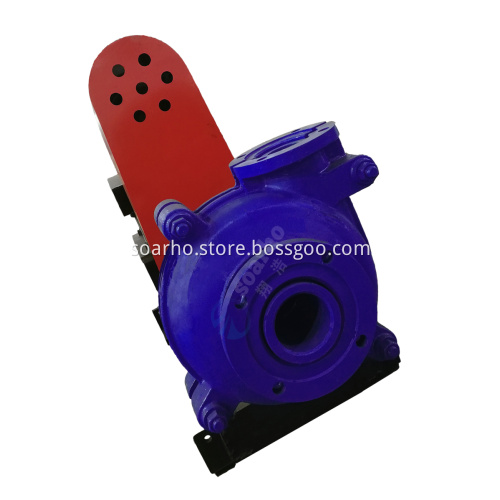

SMAH75-C mining slurry pump has high interchangeability with Warman 4/3C-AH pump, which is widely used in mining, construction, metallurgy, power plant, sewage water treatment, dredging, and chemical and petroleum industries. This one type of AH(R) series tailing thickener slurry pumps is made of abrasion resistant high-chromium alloy,  with characteristics of high efficiency, energy saving, wear-resisting and reliable running etc. The mineral processing pump SMAH50-C can withstand the extreme wear from coarse, heavy solids and flow turbulence.

Performance Parameter:

   Flow:   Q=86.4~198 m3/h

   Head:   H=9-52 m

   Speed:  n=1000-2200 r/min

   Weight: 263 kg

   Allowable Mating Maximum Power:  30 KW

Model Meaning:

For example: SMAH(R) 25-B (AH: Metal AH Series Heavy Duty Slurry Pump; AHR: Rubber AH Series Heavy Duty Slurry Pump; 25: Discharge Diameter (mm);B: Frame Type.)

1 Suction Seal  2 Cover Plate  3 Impeller  4 Stuffing Box  5 Shaft Sleeve  6 Frame  7 Bearing Assembly  8 Packing  9  Front Lantern Ring  10 Rear liner  11 Frame Plate 12 Liner  13 Discharge Seal

Other shaft sealing structures

(1)  Expeller Seal Structrue

1 Packing

2 Metal Release Gland

3 Oil Cup

4 Packing Gland

5 Lantern Ring

6 Packing Gasket

7 Expeller

(2)   Mechanical Seal Structure

1 Mechanical Seal Box

2 Stationary Ring Assembly

3 Movable Ring Assembly

Product Feature

1. High capacity bearing design.

2. Smooth flow channel, good anti-blocking performance, excellent cavitation performance.

3. The discharge position by request may be rotated 8 different angles at intervals of 45 degrees.

4. High performance materials with excellent resistance to abrasion, corrosion and erosion.

5. Various shaft seal options including gland seal, expeller drive seal and mechanical seal.

6. Application at best efficiency point and selection of wear-resistant material give long life.

7. Within the allowable pressure range, the pump can be used in multiple stages series connection with allows maximum working pressure for 3.6Mpa.

Competitive Advantage

1. Factory price, top quality.

2. Mature technology, professional manufacture directly.

3. Skilled team to provide you professional technical support and consummate after-sale service.

4. Has many successful projects.

Variable Speed Centrifugal Pump Curves

                               DCz Drive                                                                                                             CV Drive

                               CRz Drive                                                                                                             ZVz Drive

Outline Drawing
