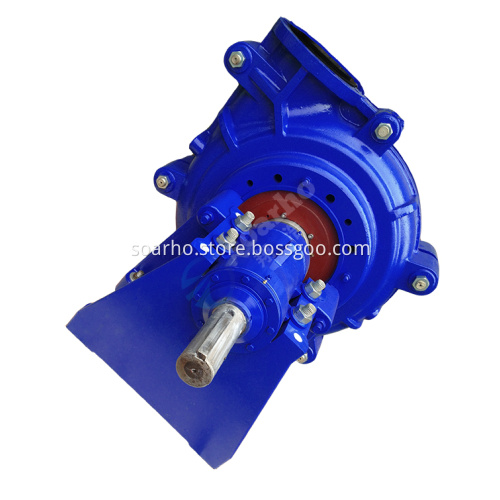

SMAH100-D Mining Slurry Pump

SMAH100-D Mining Slurry Pump

Product Profile

SMAH100-D mining slurry pump design with high-chromium alloy covered components makes it ideal for: abrasive and/or corrosive slurries; high density slurries and large particle sizes. This one type of AH(R) series tailing thickener slurry pumps has high interchangeability with Warman AH pump, with characteristics of high efficiency, energy saving, wear-resisting and reliable running etc. This ball mill slurry pump can withstand the extreme wear from coarse, heavy solids and flow turbulence.

Model Meaning:

For example: SMAH(R) 25-B (AH: Metal AH Series Heavy Duty Slurry Pump; AHR: Rubber AH Series Heavy Duty Slurry Pump; 25: Discharge Diameter (mm); B: Frame Type.)

Performance Parameter:

Flow:   Q=162~360 m³/h

   Head:   H=12-56 m

   Speed:  n=800-1550 r/min

   Weight: 626 kg

   Allowable Mating Maximum Power: 60 KW

1 Suction Seal  2 Cover Plate  3 Front Liner  4 Liner  5 Discharge Seal  6 Stuffing Box 7 Packing Gland  8 Bearing Assembly  9 Shaft Sleeve 10  Packing  11 Front Lantern Ring  12 Rear Liner  13 Impeller  14 Frame plate

Other shaft sealing structures

(1)  Expeller Seal Structrue

1 Packing

2 Metal Release Gland

3 Oil Cup

4 Packing Gland

5 Lantern Ring

6 Packing Gasket

7 Expeller

(2)   Mechanical Seal Structure

1 Mechanical Seal Box

2 Stationary Ring Assembly

3 Movable Ring Assembly

Product Feature

1. Smooth flow channel, good anti-blocking performance, excellent cavitation performance.

2. High performance materials with excellent resistance to abrasion, corrosion and erosion.

3. The discharge position by request may be rotated 8 different angles at intervals of 45 degrees.

4. High capacity bearing design.

5. Application at best efficiency point and selection of wear-resistant material give long life.

6. Various shaft seal options including gland seal, expeller drive seal and mechanical seal.

7. Within the allowable pressure range, the pump can be used in multiple stages series connection with allows maximum working pressure for 3.6Mpa.

Competitive Advantage

1. Factory price, top quality.

2. Mature technology, professional manufacture directly.

3. Skilled team to provide you professional technical support and consummate after-sale service.

4. Has many successful projects.

                               DCz Drive                                                                                                             CV Drive

                               CRz Drive                                                                                                             ZVz Drive

Outline Drawing
