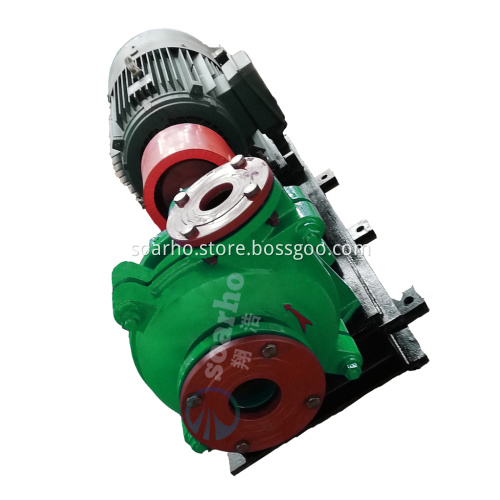

SMAHR38-B Rubber Mining Pump
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Tianjin in China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shijizhuang |
|---|---|
| Supply Ability: | 20/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | Tianjin in China |
SMAHR38-B Rubber Mining Pump
Model Meaning:
For example: SMAH(R)25-B (AH: Metal AH Series Heavy Duty Slurry Pump; AHR: Rubber AH Series Heavy Duty Slurry Pump; 25: Discharge Diameter(mm) ;B: Frame Type.)
Product ProfileHigh-quality natural rubber has excellent abrasion resistance as long as particles are not large enough to cut the rubber. Wet parts of our SMAHR38-B rubber mining pump are built from high-quality natural rubber. Rubber lined slurry pumps are available for handling the finer particle slurries to obtain long operating life. This 1.5-inch rubber lined mine slurry pump SMAHR38-B has high interchangeability with Warman AH(R) pump, which is designed for heavy duty applications such as dredging, sand and gravel, mill discharge, mining and mineral processing, cyclone feed, slurry transfer, boost pumps as well as other specialty applications.
Our AH series mine pump SMAHR38-B can withstand the extreme wear from heavy solids and flow turbulence.
Product Feature
1. High capacity bearing design.
2. Application at best efficiency point and selection of wear-resistant material give long life.
3. High performance materials with excellent resistance to abrasion, corrosion and erosion.
4. Various shaft seal options including gland seal, expeller drive seal and the mechanical seal.
5. Excellent interchangeability of metal and rubber parts.
6. The discharge position by request may be rotated 8 different angles at intervals of 45 degrees.
Performance parameter:
Flow: Q=25.2~54 m3/h
Head: H=5.5-41 m
Speed: n=1000-2600 r/min
Weight: 104 Kg
Allowable Mating Maximum Power: 15 KW
Construction Description
1 Bearing Assembly 2 Packing Gland 3 Packing 4 Positioning Sleeve 5 Frame Plate Liner 6 Impeller 7 Cover Plate Liner 8 Cover Plate 9 Frame Plate 10 Stuffing Box 11 Front Lantern Ring 12 Shaft Sleeve 13 Frame
Competitive Advantage
1. Professional pumps manufacturing and service experience.
2. Skilled team to provide you specialized technical support.
3. Factory price, top quality.
4. Has many successful projects.
5. Your business relationship with us will be confidential to any third party.
Variable Speed Centrifugal Pump Curves
DCz Drive CV Drive
CRz Drive ZVz Drive
Outline Drawing
