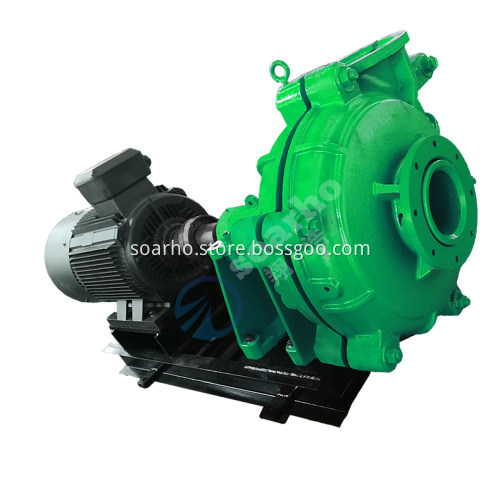

SMAHR100-E Rubber Mining Pump

SMAHR100-E Rubber Mining Pump

Performance parameter:

   Flow:   Q=144~324 m³/h

   Head:   H=12-45 m

   Speed:  n=800-1350 r/min

   Weight:  635 kg

   Allowable Mating Maximum Power: 120 KW

Soarho`s slurry pumps are heavy and robust centrifugal pumps, capable of handling tough and abrasive duties, help our customers reduce operating costs. SMAHR100-E rubber mining pump is one of them. It has high interchangeability with Warman AH pump 6/4E-AHR. This rubber lining severe duty slurry pump is built with natural rubber. Natural rubber has excellent abrasion resistance. This 4-inch is proving their reliability and efficiency widely in: minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel and other slurry handling situation.

For example: SMAH(R)25-B (AH: Metal AH Series Heavy Duty Slurry Pump; AHR: Rubber AH Series Heavy Duty Slurry Pump; 25: Discharge Diameter(mm) ;B: Frame Type.)

Product Feature

1. High capacity bearing design.

2. Application at best efficiency point and selection of wear-resistant material give long life.

3. High performance materials with excellent resistance to abrasion, corrosion and erosion.

4. Various shaft seal options including gland seal, expeller drive seal and the mechanical seal.

5. Excellent interchangeability of metal and rubber parts.

6. The discharge position by request may be rotated 8 different angles at intervals of 45 degrees.

Construction Description

1 Bearing Assembly  2 Packing Gland  3 Mechanical Seal Assembly  4 Mechanical Seal Box  5 Stuffing Box  6 Cover Plate Liner  7 Front Liner  8 Cover Plate  9 Positioning Wedge  10 Frame Plate  11 Impeller  12 Frame Plate Liner  13 Positioning Sleeve  14 Front Lantern Ring  15 Packing  16 Shaft Sleeve  17 Frame

Competitive Advantage

1. Professional pumps manufacturing and service experience.

2. Skilled team to provide you professional technical support and consummate after-sale service.

3. Factory price, top quality.

4. Has many successful projects.

5. Your business relationship with us will be confidential to any third party.

Variable Speed Centrifugal  Pump Curves

                               DCz Drive                                                                                                       CV Drive

                               CRz Drive                                                                                                       ZVz Drive

Outline Drawing
