SMGH250-G High Head Mine Pump

SMGH250-G High Head Mine  Pump

•      Product Introduction

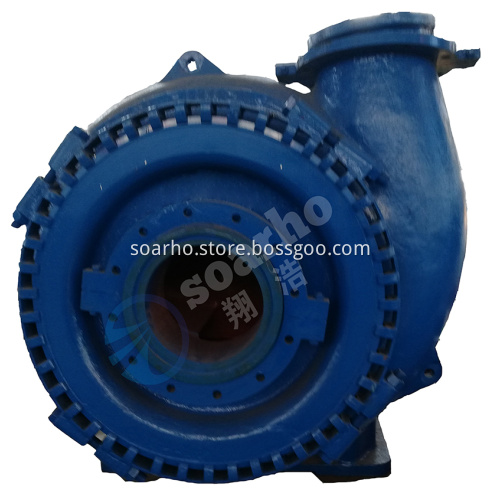

SMGH250-G high head mine pump is a high head, heavy and robust, single casing horizontal centrifugal slurry pump with an outlet diameter of 10 inches. It is capable of handling tough and abrasive duties and designed for low energy consumption, excellent performance, long wear life and easy maintenance. This type of mine slurry pump is mainly applied to mining, dredger, river training, mining and delivery of metal smelting slag etc., used as mine drainage pump, sand dredge pump, booster pump, ball mill slurry pump, flotation machine feeding pump and shield machine pump.

•     Product Feature

1. Single casing structure connected with cassette, wide passage, hard alloy liner with excellent wear resistance and good Cavitation performance.

2. The bearing assembly is cylinder type structure, the bearing could be lubricated by grease or oil to fit different site condition.

3. The clearance between the impeller and the cover plate could be adjusted to ensure the pump to operate at high efficiency point.

4. Packing seal, expeller seal and cartridge mechanical seal could be selected as shaft seal to fit different site condition.

5. Pump and drive machine can choose direct drive, V-belt drive, hydraulic coupling drive, reducer drive, VFDs.

6. The discharge direction could be positioned at any angle to fit different site installation condition.

•      Performance Curve

•     Outline Drawing
