600 WN Dredging Pump

600WN Dredging Pump

•      Product Introduction

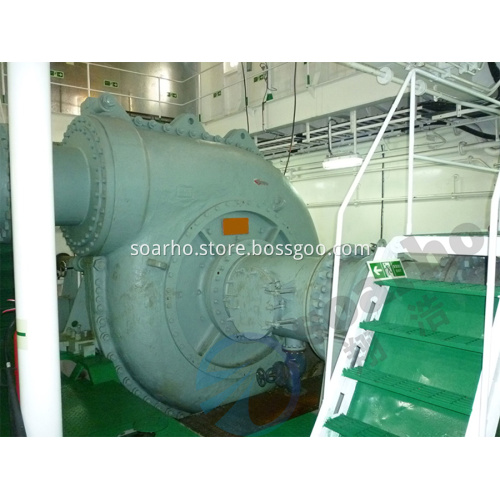

600WN  is 600mm size double-shell inboard dredging pump. The safety and reliability of the double pump casing design keeps the volute liner can be used to close to wear out, and when the liner was broken, no water will enter the pump room.The gear box is connected with own bearing bracket.Lubrication way is mandatory thin oil lubrication.It is single-stage, single-suction, cantilever, horizontal centrifugal slurry pump.The flow passage of the impeller is wide through the capacity, so it is difficult to block for pumping sand gravel or high plastic clay. It has super strong excavation and suction ability. This  pump is simple and reliable in structure, easy to disassemble and maintain, and adopts high chrome cast iron parts,which has a long trouble-free life.

600WN is marine sand dredger pump for dredging of river and sea.It is suitable for dredging and filling operations of cutter-suction dredger and trailing suction dredger. It is also used as sand suction dredge pump for river sand mining and mining vessels.

•     Product Feature

1.The structure is simple and reliable.

  600WN adopts double pump casing structure, with its own bracket.Lubrication way is mandatory thin oil lubrication.The safety and reliability of the double pump casing design keeps the volute liner can be used to close to wear out, and when the liner was broken, no water will enter the pump room.

    1      Bearing box

    2      Bearing

    3      Screw shaft sleeve

    4      L-shaped seal assembly

    5      Seal box

    6      Rear plate liner

    7      Shoulder ring

    8      Volute liner

    9      Discharge lining pipe

    10      Frame plate

    11      Gland cover plate

    12      Cover plate

    13      Throat bushing

    14      Water sleeves

    15      Wear ring

    16      Impeller

    17      Intake lining pipe

    18      Seal box protecting ring

    19      Sand control plate

                                                                                                                                       20      Impeller release collar

                                                                                                                                       21      Shaft

                                                                                                                                       22      Thrust collar

                                                                                                                                       23      Impeller release collar

                                                                                                                                       24      Turning plate

   2. Easy to assemble and disassemble and easy to maintain. The front dismantling structure is adopted, and special disassembly tools are equipped to facilitate disassembly and assembly.

   3.The performance of dredging is excellent. The flow and head curve of the pump are steep, the suction ability is strong, the ability of passing the pump is good, the change of the distance is more applicable, and the depth of digging and the higher transportation concentration can be reached.

   4.Good wear resistance and long life of flow wear parts. The impeller, volute liner, throat bushing and rear plate liner (wearable liner) are made of strong wear resistant alloy cast iron whose hardness is not less than 58HRC.It has not only impact on resistance but also high anti-abrasion performance.

   5.Using advanced hydraulic model, the pump has low hydraulic loss, high efficiency and low energy consumption. The service life of each part is full considered in the process of product design. The same replacement cycle reduce the maintenance and replacement costs.

   6.The shaft seal is reliable and no leakage.

        The shaft seals adopts screw shaft sleeve with L-shaped rubber seal device, which consists of three L-shaped seal rings and one threaded shaft sleeve.

 •      Performance Curve

 •      Outline Drawing

 See the attachment.
