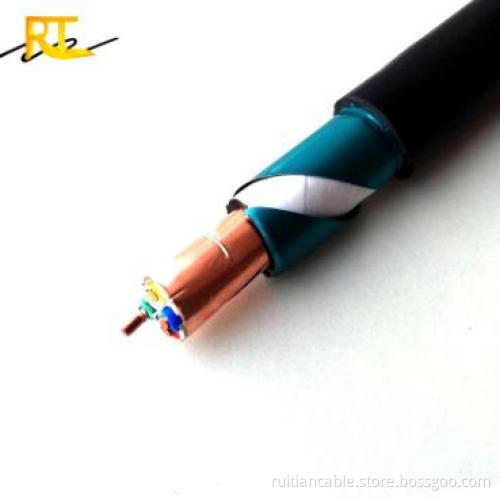

Copper Tape Shielded Armored Control Cable
-
USD5≥100 Meter
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 100 Meter
- Min. Order:
- 100 Meter
- Delivery Time:
- 10 Days
- Transportation:
- Ocean
- Port:
- Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 1 million meters per month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | Tianjin |
Description
1. Application
The cables are designed for connection wires of power distribution equipment for controlling, monitoring, protecting circuits with A .C. rated voltage 450/750V (0.6/1kV)and below.
2. Standards
GB/T9330-2008 ,IEC 60502, etc.
*Ruitian can also design and produce for special application requirement.
3. Operating features
3.1 Rated voltage Uo/U is 450/750V(600/1000V).
3.2 Allowed continuous working temperature of conductor is 90℃
3.3 Installation temperature of cables should be no less than 0℃ . Bending radius should be not less than 12 times O.D. of cable.
3.4 Max. Temperature of conductor (Max. 5sec. duration) should be not more than 250℃ .
4. Type,description and main application Table
| Chinese Type | Description | Main Application |
| KYJV |
Copper conductor XLPE insulated and PVC sheathed control cable |
Laying indoors,in trenches, in ducts and directly in ground |
| KYJVR |
Copper conductor XLPE insulated and PVC sheathed flexible control cable |
|
| KYJVP |
Copper conductor XLPE insulated and PVC sheathed control cable with copper tape lapping screen |
Laying indoors,in trenches, in ducts directly in ground and other places that interference-resistance is requested. |
| KYJVP2 |
Copper conductor XLPE insulated and PVC sheathed flexible control cable with braiding screen |
|
| KYJVRP |
Copper conductor XLPE insulated and PVC sheathed control cable with copper tape longitudinal screen |
|
| KYJVRP2 |
Copper conductor XLPE insulated and PVC sheathed flexible control cable with copper tape lapping screen |
|
| KYJV22 |
Copper conductor XLPE insulated and PVC sheathed control cable with steel tape armour |
For flxed installation,laying indoors, in trenches and ducts,directly in ground where heavier mechanical force withstood |
| KYJV32 |
Copper conductor XLPE insulated and PVC sheathed control cable with steel wire armour |
For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force |
| KYJVP2-22 |
Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with copper tape lapping screen |
For fixed installation, laying indoors, in trenches and ducts,directly in ground where heavier mechanical force and interference resistance withstood |
NOTE : Ruitian can produce [Flame-Retardant Series", [Fire-Resistant Series", [Low Smoke Halogen Free (LSHF/LSOH) Series",[Low Smoke Low Halogen (LSLH) Series", etc. control cable as customer required.
Performance in line with IEC60332: 2004 requirements.
5. Production range
| Type |
Rated voltage V |
Nom.area of conductor (m㎡) | ||||||
| 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| No.of cores | ||||||||
| KYJV | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVR | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVRP | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVP | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVP2 | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVRP | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVRP2 | 450/750 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~14 | 2~10 |
| KYJVPT | 450/750 | 2~61 | 2~61 | 2~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVPL | 450/750 | 7~61 | 7~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVP2-22(A) | 450/750 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVPT-22(A) | 450/750 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
| KYJVPL-22(A) | 450/750 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 | 4~10 |
KYJV type 450/750V(0.6/1kV) copper conductor XLPE insulated and PVC sheathed control cable to GB/T9330-2008
Packing :
1.Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable
Ruitian Wire&Cable is always insist on [Living by Quality, Develop by Credit" and aimed at creating biggest value for customers. Ruitian Wire&Cable is always ready to serve you.
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
|
|
||
