High Voltage Copper Core Power Cable

USD5

≥100 Meter

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 100 Meter

Min. Order:: 100 Meter

Delivery Time:: 10 Days

Transportation:: Ocean

Port:: Tianjin

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	1 million meters per month
Payment Type:	L/C,T/T
Incoterm:	FOB
Transportation:	Ocean
Port:	Tianjin

Product Description

Quick Information

Brand Name:Ruitian or OEM
Place of Origin:China
Model Number :YJV22
Conductor Material :Copper
Insulation Material :XLPE
Jacket :PVC
Type :High Voltage
Number of Conductors :1 3

Description

Description

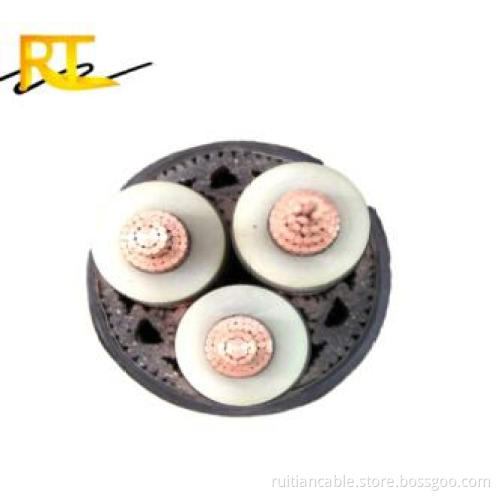

Construction: Compacted stranded circular copper conductor, extruded semi-conducting compound as conductor screen, cross-linked polyethylene(XLPE) insulation, semi-conducting compound as insulation screen, copper tape or combination of copper wire and tape as metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, PVC or PE outer sheath.

Designed

Um is the maximum value of the [highest system voltage" for which the equipment may be used.

Max. permissible continuous operating temperature of conductor: 90 °C

Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed: 250 °C

The ambient temperature under installation should not be lower than: 0 °C

The bending radius of cable is recommended as following:

For single core cable: not less than 20 times of the diameter of cable

For three core cable: not less than 15 times of the diameter of cable

Manufacturing Standards: GB/T 12706-2008, IEC 60502-3

Type	Description	No. of cores	Nominal cross section of conductor
YJV	Copper conductor XLPE insulation PVC outer sheath Power Cable	1 or 3	50~800mm²
YJY	Copper conductor XLPE insulation PE outer sheath Power Cable	1 or 3	50~800mm²
ZA-YJV ZB-YJV ZC-YJV	Copper conductor XLPE insulation flame-retardant Power Cable	1 or 3	50~800mm²
WDZA-YJY WDZB-YJY WDZC-YJY	Copper conductor XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1 or 3	50~800mm²

Application

The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, outdoors, in tunnel or in cable trench, unable to bear external mechanical force.

Single core cable in magnetic duct is not permissible.

Packing :

1.Lengths:100m/roll,200m/roll,300m/roll,100yard/roll accroding to customes requirement.
2.Inner Packing:carton box,pull out box,pallet avilable
3.Outer Packing:carton box,pull out box,pallet avilable

Ruitian Wire&Cable is always insist on [Living by Quality, Develop by Credit" and aimed at creating biggest value for customers. Ruitian Wire&Cable is always ready to serve you.
