Safe Retractable Wire Rope Fall Arrester
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land
- Port:
- TIANJIN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | iso, sgs |
| Transportation: | Ocean,Land |
| Port: | TIANJIN |
Quick Information
-
Brand Name:xiangfa
-
Place of Origin:China
-
Model Number :08
Description
Description of safety helmets
1.wire rope fall arrestretractable fall arrester
2. corrosion-resistant, non-disassembling
3.retractable
Standard: ISO9001:2008
1. Initiate " double U shape brake tooth" technique, its action is safe and reliable.
2. Brake system utilizing special material, special fabrication processing, and it is anti corrosive, shockproof and wearproof.
3. One step shaping Aluminmun alloy shell, and it is light, corrosion-resistant, non-disassembling.
4. Both tips utilizing non-skid hook.
5. Offer multi-distance action radius, no need to change suspension point in working.
6. This products can stop dropping automatically within 0.2 meter to make worker safe, when the speed of steel wire rope is more than 1m/sec.
7. Material: aero-wires, special spliced sling,and it is feature flame retardant, heat resisting, anti corrosive, safe and reliable.
8. Special appearance, look nice.
Safety Falling Protector has the advantages of reasonable design, novel structure and advanced process, with short falling distance, small impact force, stable lock, high safety factor, convenient use, large range of activity, high temperature resistance, wear resistance, light weight, convenient carrying and so on. According to the range of working range 3-50M, it solves the disadvantages of frequent replacement of suspension position and big drop.
Application
Safety falling protector, fall arrester in line construction is with the staff free to rise and fall in the rising and falling. It can stuck wire rope when you fall.It is used to avoid the fall of casualties in the power tower or other high-altitude operations.
Notes
This product is divided into nylon rope, wire rope and ACSR. You need to specify which one you need when you order.
Webbing
product parameter
Item
Model
J-Z-3
J-Z-5
J-Z-10
J-Z-15
J-Z-24
Radius(m)
3
5
10
15
24
Speed(m/s)
2
Capacity(kg)
150
Self-locking(m)
≤0.2
Maximum load
12kN
Age (years)
2-10
Impact force
≤6.0kN
Net weight(kg)
0.7
1.2
2.8
4
5.8
Wire rope
product parameter
Item
Model
TS-3
TS-5
TS-7
TS-10
TS-15
TS-20
TS-30
TS-40
Radius(m)
3
5
7
10
15
20
30
40
Speed(m/s)
1
Capacity(kg)
100
Brake distance(m)
≤0.2
Braking strength(N)
≥8900
Age (years)
2-10
Net weight(kg)
1.2kg
1.7kg
2kg
2.6kg
4.5kg
5.6kg
6.6kg
8kg
Price
-
Delivery Port :As per customers' request
Packaging & Delivery
-
Delivery Lead Time :Shipped in 15 days after payment

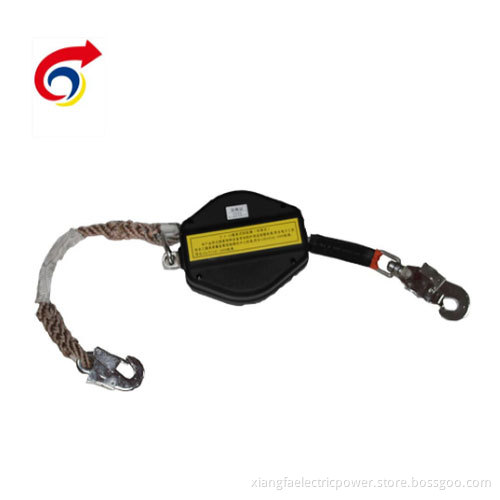

Product Image
-
Quick Information
- Brand Name:xiangfa
- Place of Origin:China
- Model Number :08
Description
Description of safety helmets
1.wire rope fall arrestretractable fall arrester
2. corrosion-resistant, non-disassembling
3.retractable
Standard: ISO9001:2008
1. Initiate " double U shape brake tooth" technique, its action is safe and reliable.
2. Brake system utilizing special material, special fabrication processing, and it is anti corrosive, shockproof and wearproof.
3. One step shaping Aluminmun alloy shell, and it is light, corrosion-resistant, non-disassembling.
4. Both tips utilizing non-skid hook.
5. Offer multi-distance action radius, no need to change suspension point in working.
6. This products can stop dropping automatically within 0.2 meter to make worker safe, when the speed of steel wire rope is more than 1m/sec.
7. Material: aero-wires, special spliced sling,and it is feature flame retardant, heat resisting, anti corrosive, safe and reliable.
8. Special appearance, look nice.
Safety Falling Protector has the advantages of reasonable design, novel structure and advanced process, with short falling distance, small impact force, stable lock, high safety factor, convenient use, large range of activity, high temperature resistance, wear resistance, light weight, convenient carrying and so on. According to the range of working range 3-50M, it solves the disadvantages of frequent replacement of suspension position and big drop.
Application
Safety falling protector, fall arrester in line construction is with the staff free to rise and fall in the rising and falling. It can stuck wire rope when you fall.It is used to avoid the fall of casualties in the power tower or other high-altitude operations.
Notes
This product is divided into nylon rope, wire rope and ACSR. You need to specify which one you need when you order.
Webbing
| product parameter | |||||
| Item | Model | ||||
| J-Z-3 | J-Z-5 | J-Z-10 | J-Z-15 | J-Z-24 | |
| Radius(m) | 3 | 5 | 10 | 15 | 24 |
| Speed(m/s) | 2 | ||||
| Capacity(kg) | 150 | ||||
| Self-locking(m) | ≤0.2 | ||||
| Maximum load | 12kN | ||||
| Age (years) | 2-10 | ||||
| Impact force | ≤6.0kN | ||||
| Net weight(kg) | 0.7 | 1.2 | 2.8 | 4 | 5.8 |
Wire rope
| product parameter | ||||||||
| Item | Model | |||||||
| TS-3 | TS-5 | TS-7 | TS-10 | TS-15 | TS-20 | TS-30 | TS-40 | |
| Radius(m) | 3 | 5 | 7 | 10 | 15 | 20 | 30 | 40 |
| Speed(m/s) | 1 | |||||||
| Capacity(kg) | 100 | |||||||
| Brake distance(m) | ≤0.2 | |||||||
| Braking strength(N) | ≥8900 | |||||||
| Age (years) | 2-10 | |||||||
| Net weight(kg) | 1.2kg | 1.7kg | 2kg | 2.6kg | 4.5kg | 5.6kg | 6.6kg | 8kg |
