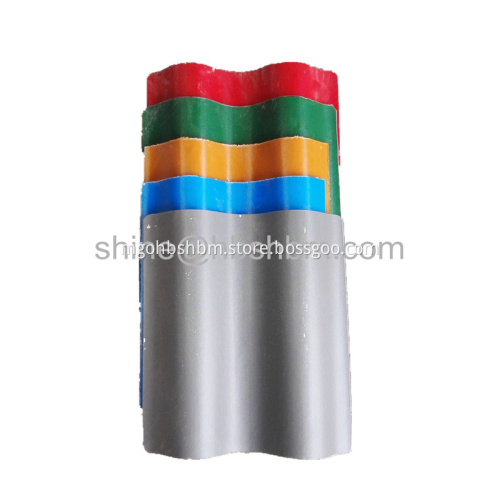

Shock Resistante Mgo Roofing Sheets

     This roofing sheet has many good features: first, this material is harmless to the environment and people's body, it has no asbestos, no formaldehyde and no benzene at all. The second, it is a high strength sheet, not easy to be bended, tobe cracked and to be damaged. Its horizontal breakage is more than 3100n/m, the vertical breakage is more than 305n/m, these number is much higher than the other materials. The third, the thermal conductivity of this roofing is 0.169w/m.k. and the steel roofing`s number is 46.52w/m.k. obviously, our roofing sheet has a good performance of heat insulation. Its fire-retardant has reached grade A1, and the refractoriness temperature over 1200 degree. At the same time, its effect of sound insulation is also excellent, when the outside is raining, the people lives or works inside will not be affected. The most important advantage of this roof is the ability of anti-corrosion, acid and alkali resistance. This is very important, it decides this material can be used in the environment of high temperature, high corrosion, Such as chemical plant, feeding farms, casting factory, work shop, warehouse, garage, market shed and roof of residence. And it can service for a long time, almost 15 to 30 years that means our customers can save so much money of replacement for the materials and labors. And also, this roofing sheet is very popular in some areas of prone to the typhoon because of its shock assistance and water tightness are remarkable.

             Magnesium oxide,magnesium choride,tawcum power,glass fiber cloth,sawdust and others.

Sectional drawing

3.Specification

Length:1800mm 2000mm 2400mm 3000mm 5800mm

Width:960±5mm

Thickness:5.0±0.5mm     4.0±0.5mm

Weight:10.5-11kg/meter

The roofing tiles can be made in different sizes according to customers`requirements.

Loading:20ft container   27tons    2350meters

  Big wave profil

4.three series of roofing sheets  (1 )MGO Glazed roofing sheets

    Its mainly color is whitebeige, this kind of tiles usually be used as the simple buildings, This kind

    of roofing tiles could be used about more than 10 years. Its cost is low.

(2) PET combined MgO roofing sheets

   PET membrane is a kind of anti-aging film, this kind of tiles could be in different color

  according to your require.The performance of UV blocking, corrosion resistant and servicelife

  is longer. This kind tiles could be used more than 20 years.

(3) Aluminium Foilcombined MgO Roofing sheets

   The surface is Aluminiumfoil. Its performance of anti corrosion, UV blocking and Acid &alkali

   resistance is the best. The Aluminium foil MgO roofing tiles couldbe used more than 30 years.

Features and Performance Advantages  --There are many features,such as high strength,fire-proof,heat-insulation,corrosion resistant,

acid&alkali resistant,anti-aging,shock resistant,long service.

--The MGO roofing sheets could be processed by saw,nails,drilling ,installed simply and quickly,save material cost and labor cost.

Application and projects

The high performance characteristics make the MGO roofing tiles suitable for being used in the roof application of high temperature,high corrosion industry,such as chemical plant ,feeding farms,casting factory,work shop,warehouse,market shed,garage,apartment,residence,etc.

Project Name: Tieying Pharmaceutical Workshop

Project Name:Huishang Dairy Breeding Base

"Iron Crown " high strength lightweight MGO anti-corosion insulated roofing sheets better than plastic thatch roof.

 Due to its excellent performance of corrosion-resistant,acide&alkali resistant,weather resistant,,environmental,etc,prolong the service lift of the buildings,reduce  the cost of labor and the replacement of the installation,make the integrated cost of application much lower.it is the best substitute of asbestos sheets,steel sheets,cement sheets and ttatched roof.

Performance comparison

MAIN Advantages of MGO Roofing over Colour Steel sheeting

(1) Energy conservation:  MGO roofing sheet has good heat insulation performance and can save energy consumption of the building.

The heat insulation performance is determined by the physical performance of the raw materials,

the heat conductivity is 0.169w/m.k. The MGO roofing heat insulation performance is improved due

to sunlight reflection off the aluminium foil.

 (2) Fireproof

MGO roofing has excellent fire proofing performance. The colour sheet requires additional fire proofing rock

wool to improve its heat insulation and fire proof performance.

(3) Product life

The colour steel sheet normally needs to be maintained ,painted and anti-rust treated every three to four years and every 6 to 8 years must be replaced.MGO roofing life span is more than 20 to 30

years.he comprehensive application cost of MGO roofing is less than colour steel sheeting .

(4) Acide and alkali resistance

MGO roofing can be used under strong acid and alkali conditions.Coulur steel sheet cannot bear acid and alkali. Especially high tempature,high corrosion, chemical plant,feeding-farm,it will be rechanged everything 2 or 3years.

(5) Comprehensive application costs

The comprehensive application costs of MGO roofing is far less than corrugated steel sheet.

♥The product life can reach over 20 years. The material and labor cost of renovating,changing and maintaining

 the steel sheet roofing is more expensive than MGO roofing .

♥The excellent heat insulation performance of MGO roofing can save a lot of energy consumption cost than

steel roofing sheet building.The additional heat insulation layer of corrugated steel sheet also adds additional costs.

Production line and equipment

Storage
