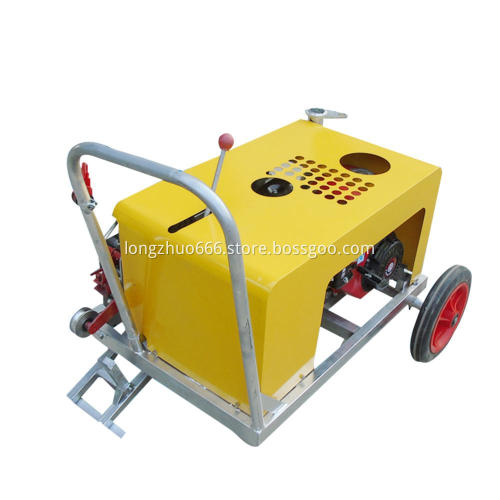

800KGS Pull Tension Optical Cable Conveyor

800KGS Pull Tension Optical Cable Conveyor

Cable Tractor  Techicnial Data:

1 Pulling >=200 KG

2 SPeed: 1M-1.6M/S

3 Suit for cable diameter:5mm-45mm

4 suit for cable:288/7*2.6/4*35m2

5 Belt:1000mm * 60mm

6 engine fuel tank:4L gasoline

7 Max power:3.7 KW

8 Size:80*60*80cm

9 outer size:110cm * 85cm

10 Weight:90KG

11 function:pull,push,stop.

Cable Tractor for pulling optical cable ,fiberglass cable, fiberglass duct rod, duct rodder, replace workerman for pulling, the force is 200kg, so reduce the member.

1.The machine is mainly composed of engine, gearbox and transmission device. The clamping of the transmission device is used up and down to make the cable effective. Tractors with gasoline engine as power source, the transmission drive shaft gear chain, the chain bite transmission device, drive transmission belt, realize the straight line, the machine is also equipped with support bar to support machine in the operation of the cable force, keep the machine fixed transmission cables.
2. The machine is easy to operate, and the four operating stops are (push, pull, idle, and slow) to select the desired position. Before changing gear, you must adjust the throttle to the idle state, and then control the accelerator on your hand when you hang it. Turn off the flame switch after use.

Cable Tractor has a large advantage: time-saving, labor saving, efficiency saves the production cost.
