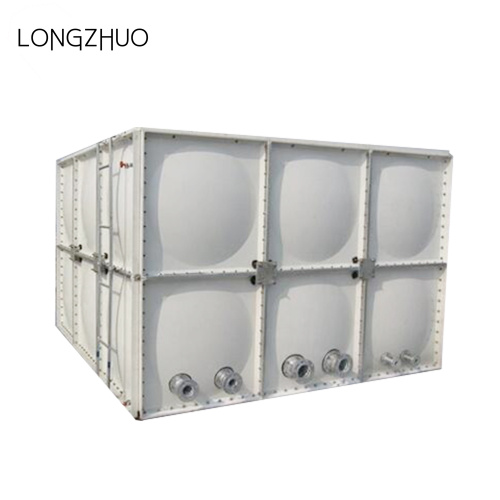

Flexible FRP GRP Water Tank

SMC Water Tank Description

It is composed of SMC mould compressed plate, sealing material, metal structural part, and fittings. It is site installed, which gives great convenience for design and construction. when using the GRP Water Tank, If the original water tank needs to be replaced, it will not need to reform the housing.For normal water tank, design per standard.For special water tank, design especially. We can design the water tanks of 0.125~1500m3.

SMC Water Tank Features and Structure

1.Strong resistance to corrosion.

2.Reasonable structure design.

3.All welded on-site combination. High strength, good sealing, prevent secondary pollution of water quality.

4.Light weight, that is one half of ordinary steel plate water tank.

5.Easy to install.

6.Clean, bright, beautiful appearance.

SMC Water Tank Panel Size

Water tank size: Can be made as your reuqest.

Panel size: 1mx1m, 0.5mx0.5m, 1mx0.5m

Wall board thickness: 5mm,8mm,10mm,12mm,14mm,16mm etc.

Water Storage Tank Accessories

1.Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod

2.Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience
and technology on SMC products. It maintains soft itself and adhesives even at low temperatures

3.Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in
contact with water internally are hot dipped galvanized steel or stainless steel 304

4.Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized steel or stainless steel 304

5.Ladders: SMC sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same
with the supports. The external ladders shall be galvanized mild steel or equivalent

6.Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The
concave drain panel has been designed to ensure the periodic cleaning and inspection of tank

7.Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter

8.Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of:
600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement

9.ABS roof vent with PE insect screen

10.Float level indicator, optional SS304 for internal and external support structure are available on request.

Water Storage Tank Packing and Delivery
