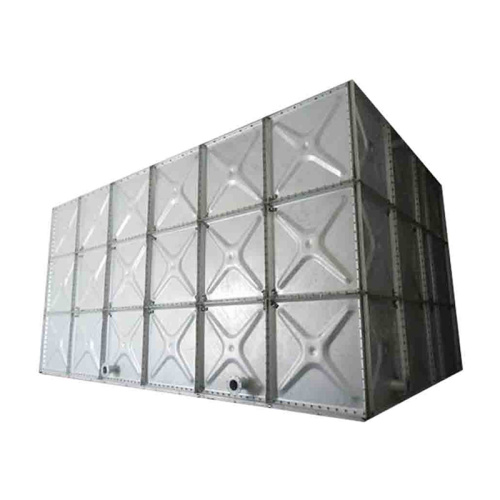

Modular Sectional Elevated Steel Tower Water Reservoir Tank

Modular Sectional Elevated Steel Tower Water Reservoir Tank

1. The plate is press by the special equipment, the surface is smooth, and the concave shape of the plate is good for reduce the pressure of the water pressed to the plate.

2. The plate is made of Q235 steel.

3. The thickness of the plate : 5mm, 4mm, 3mm, 2.5mm, 2mm

It is different according the size of the tank.

4. The size of the hot dip galvanized steel plate: 1000mm*1000mm, 1000mm*500mm,

5. The size of the water tank, it can be design according the size of the location place, the tallest height is 5meters.

Hot-dip Galvanized Steel Water Tank Accessories

1. Support for Panels: The panels shall be supported externally or internally by an adequate support system.

External Reinforcement - Hot Dipped Galvanized Steel.

Internal Reinforcement - Hot Dipped Galvanized

2. Sealing Materials: Non toxic Rubber foam to be used for all jointing, it is especially developed with long experience and technology. It maintains soft itself and adhesives even at low temperatures

3. Bolts, nuts and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel and in contact with water internally are hot dipped galvanized steel.

4. Flange: the flanges for inlet, outlet, drainage, overflow are hot dipped galvanized stee.

5. Ladders:  sectional tank of 1.5m depth or more shall be provided with internal ladder made up of materials same with the supports. The external ladders shall be galvanized mild steel or equivalent.

6. Drainage: The dome shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of tank

7. Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter.

8. Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of: 600 x 600mm. the opening can be designs of bolt, seal-tight locking arrangement.

9. ABS roof vent with PE insect screen.

10. Float level indicator, optional SS304 for internal and external support structure are available on request.

Hot-dip Galvanized Steel Water Tank Range Applications

1. Construction water storage

2.  Regulating tank

3.  Heating system's inflation water tank

4.  Defense project, firefighting, fire proof water storage.

We also have GRP Water Tank, Stainless Steel Water Tank for your different usage.

Hot-dip Galvanized Steel Water Tank Production Process

Hot-dip Galvanized Steel Water Tank Packing and Shipping
