35mm Sedimentation Lamella Plates

$2.00

≥100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Min. Order:: 100 Piece/Pieces

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100,000 Pieces/Month
Supply Ability:	50,000Pieces/Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF
Certificate:	SGS
HS Code:	3926909090
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

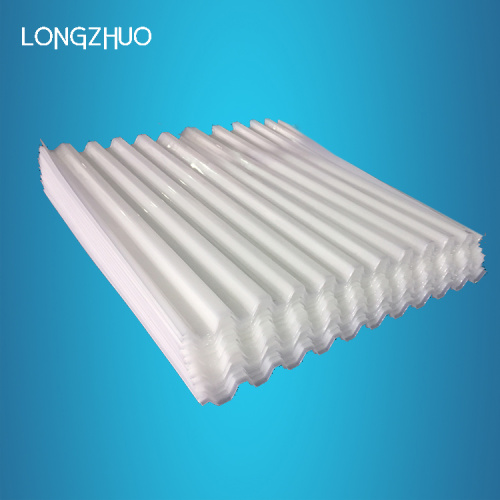

35mm Sedimentation Lamella Plates

Tube settler produced by our company uses PP, PVC as its raw material. It was hot-drawn into a hexagonal tube shape by infrared thermal machine and then welded into the using shape with patented technology and high frequency.
Our inclined tube settler can be applied to many kinds of precipitation and sand removing. In decades, it is the most mature water treatment device that widely used in drainage projects. With the advantages of wide application range, high treatment efficiency and small occupation area, it can be used in water inlet degritting, industrial and living water sedimentation, sewage sedimentation, grease and tailing enrichment processing...and so on. It not only can be applied to new construction project but also the transformation of existing old tank and you can achieve astounding economic benefit in both occasions.

Specification Of Lamella Plate

Aperture (mm)	Thickness (mm)	Quantity (pcs/m2)	Weight (kg /m2)	Surface Area (m2/m3)
25	0.40	62	30	139
35	0.45	42	25	109
50	0.50	30	19	87
80	0.70	19	20	50

Tube settlers increase the settling capacity of circular clarifiers and/or rectangular sedimentation basins by reducing the vertical distance. The floc particles would settle before agglomerating to form larger particles. The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times. Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. The settler's channel collects solids into a compact mass which promotes the solids to slide down the tube channel.
