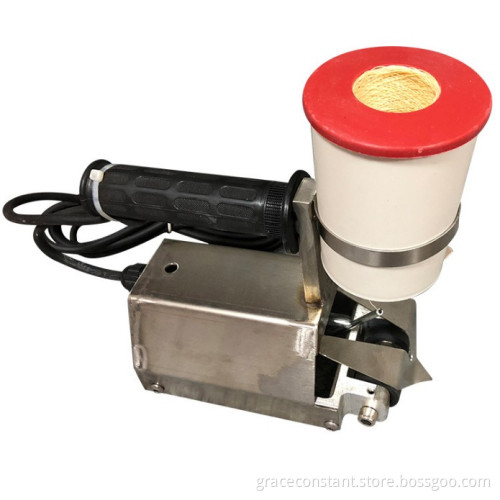

Handy Veneer Stitching Machine Veneer Splicer
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 2 Days
- Transportation:
- Ocean, Land, Air, couier
- Port:
- Tianjin, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 piece per week |
| Supply Ability: | 100 piece per week |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO |
| HS Code: | 8465940000 |
| Transportation: | Ocean,Land,Air,couier |
| Port: | Tianjin,Guangzhou,Shanghai |
DESCRIPTION:
Application:
Widely used in advanced parquet, veneer, dining table, veneer veneer, office
furniture, flooring, curved wood, bed mother, etc.
Specification:
Normal AC voltage: AC 220V( Do not support 110V)
Net weight: 3 kg
Splicing Thread Length:1300M
Melting Point of the thread:120C
Threading steps:
1. Insert the heat pipe into the barrel tray hole
2. Put the glue thread into the thread stop wheel first, then thread the lead
needle
3. Pass the lead pin into the top hole of the heat pipe until the lower end
exposes the lead pin
4. Clamp the exposed pin end and pull it down
5. The glue line is pressed by the bottom of the pressure roller
Operating steps:
1. Lightly lift the machine and lightly press the roller on the surface of the
veneer. The main heat pipe does not touch the veneer.
2. Keep the pressure roller and the roller at the same horizontal line, push
down and push forward
3. After completion, please do not lift the machine and pull it back. Please
follow the instructions to automatically cut off.
4. After cutting, the line is caught by the stop wheel. If you need to operate,
pull the glue line back to the rubber pressure wheel.
Package Included:
1x Woodworking Sewing Machine
1x Temperature Control Switch
2x J6 Splicing Threads
